Convenient design available for the 3 module surface mounting of the modular door station (DS-KD8003-IME1 or DS-KD8003-IME2)
Material: SECC

Convenient design available for the 2 module surface mounting of the modular door station (DS-KD8003-IME1 or DS-KD8003-IME2)
Material: SECC

Convenient design available for the 1 module surface mounting of the modular door station (DS-KD8003-IME1 or DS-KD8003-IME2)
Material: SECC

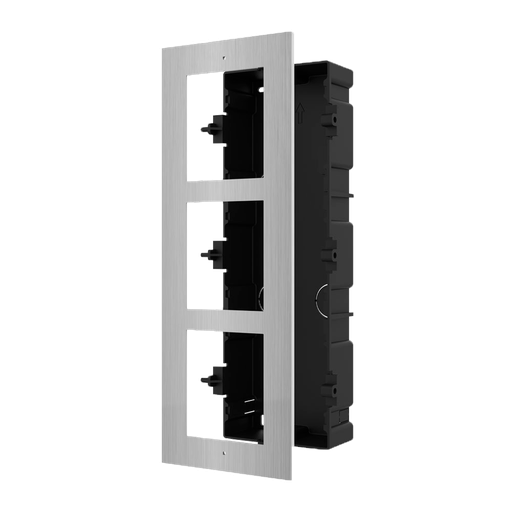

. 3 supports de montage encastrés pour module de station de porte modulaire : comprend un boîtier électrique, des vis de couverture, des câbles, etc.
. Matériau en acier inoxydable de haute qualité.

Température de fonctionnement : -40 °C à 55 °C (-40 °F à 131 °F)

Le DS-KD-ACF3 est composé de deux parties :

1) Boîtier de jonction :

. Matériau : plastique
. Dimensions (L × H × P) : 338.8 x 135 x 56 mm

2) Façade :

. Matériau : Aluminium aéronautique
. Dimensions (L × H × P) : 337.8 x 124 × 4 mm

Que contient la boîte ?

1 x façade en aluminium
1 x Boîtier de jonction en plastique
3 x câble RS485
1 x clé de montage
1 x visserie
Manuel d'installation

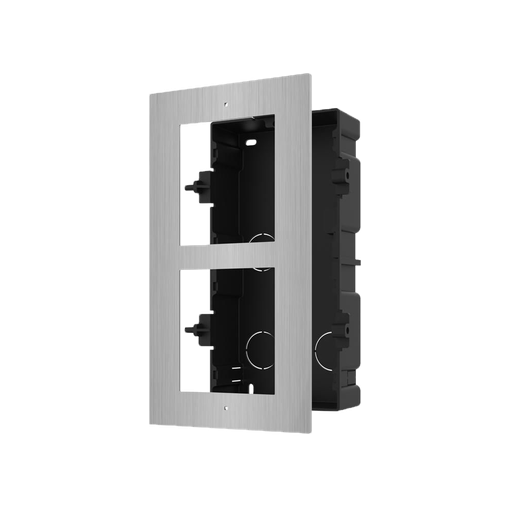

2 Flush mounting module brackets of modular door station: includes gang box, cover screws, lines, etc.
Stainless steel high quality material

3 Flush mounting module brackets of modular door station: includes gang box, cover screws, lines, etc.
Plastic material

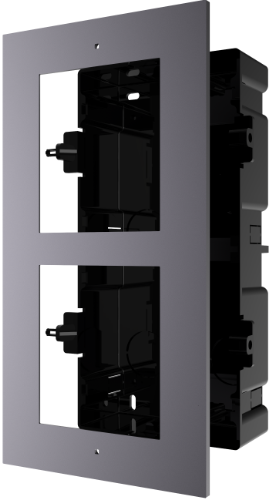

2 Flush mounting module brackets of modular door station: includes gang box, cover screws, lines, etc.
Plastic material

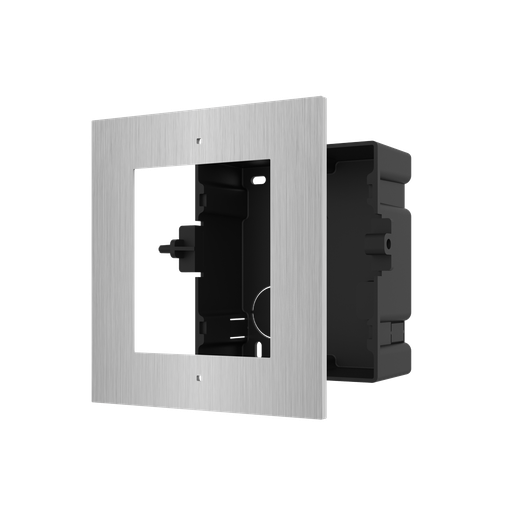

1 Flush mounting module brackets of modular door station: includes gang box, cover screws, lines, etc.
Stainless steel high quality material

3 Surface mounting module brackets of modular door station: includes 3 module frame , 3 module front panel, 1 button cover and some other necessary accessories
Aviation aluminum high quality material

2 Surface mounting module brackets of modular door station: includes 2 module frame , 2 module front panel, 1 button cover and some other necessary accessories
Aviation aluminum high quality material

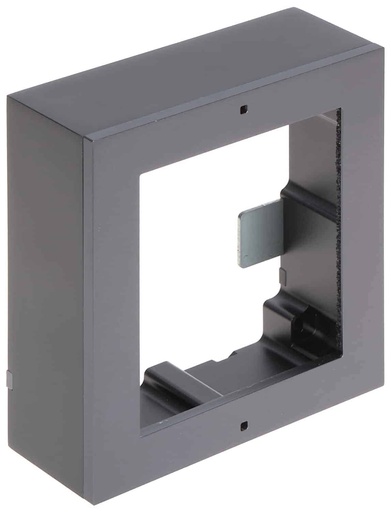

1 Surface mounting module brackets of modular door station: includes 1 module frame , 1 module front panel and some other necessary accessories
Aviation aluminum high quality material

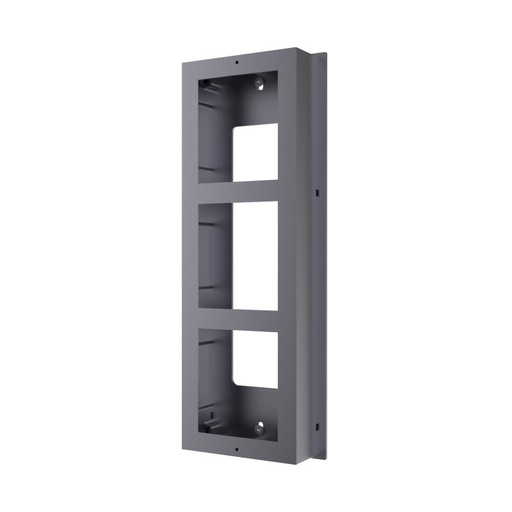

. Supports de montage en surface pour 3 modules de station de porte modulaire.
. Matériau de haute qualité en aluminium aéronautique.
. Compatible avec Bticino, Comelit Boîtier encastré pour 3 modules.

Poids net : 500 g
Poids brut : 779 g
Working temperature : -40 °C to 55 °C (-40 °F to 131 °F)
Working humidity : 10% to 95%
Dimension (W × H × D) : 326.82 mm × 122 mm × 39.2 mm (12.87" × 4.80" × 1.54")
Material : Aviation Aluminum
