DAHUA DHI-VTO4202F-MB1

1-Button Module for VTO4202F Modular Video Intercom System

The DAHUA DHI-VTO4202F-MB1 is a 1-button call module designed for the Dahua VTO4202F modular IP video intercom system. It allows visitors to call a single indoor station and integrates seamlessly with the VTO4202F series main module, making it ideal for villas, apartments, offices, and commercial buildings. Constructed from aluminum alloy, it supports both surface-mounted and flush-mounted installations while providing IP65 weatherproof and IK07 vandal-resistant protection.

Key Features
- 1 mechanical call button
- Compatible with Dahua VTO4202F modular video intercom systems
- Durable aluminum alloy construction
- Powered directly by the main module (5 VDC)
- Supports surface-mount and flush-mount installation
- IP65 weatherproof and IK07 vandal-resistant protection
- Low power consumption (≤ 0.5 W)
- Dimensions: 100 × 50 × 30.5 mm
- Silver finish to match VTO4202F modular stations
- Ideal for villas, apartment buildings, offices, and commercial applications

DAHUA VTM53R3

3-Module Surface-Mount Box with Rain Cover for VTO4202F Series

The DAHUA VTM53R3 is a 3-module surface-mount box with integrated rain cover designed for the Dahua VTO4202F modular video intercom series. It provides a robust and weather-resistant installation for three-module door station configurations, protecting the intercom from rain and harsh outdoor conditions while ensuring a clean and professional appearance. It is compatible with the VTM126 front panel (bezel) for a complete installation.

Key Features
- Surface-mount box with integrated rain cover for 3-module VTO4202F series
- Compatible with Dahua VTO4202F and VTO4202FB modular door stations
- Designed for use with the VTM126 front panel (bezel)
- Durable AL5052 aluminum construction
- Silver and black finish
- Provides effective protection against rain and outdoor weather conditions
- Surface-mount installation
- IP65 protection (when installed with silicone sealant)
- Dimensions: 144.8 × 341.4 × 52 mm
- Net weight: 0.54 kg
- Gross weight: 0.83 kg
- Ideal for apartment buildings, residential complexes, offices, and commercial video intercom installations

DAHUA VTM127 + VTM125

2-Module Flush-Mount Box with Front Panel for VTO4202F Series

The DAHUA VTM127 + VTM125 is a 2-module flush-mount installation kit designed for the Dahua VTO4202F modular video intercom series. The kit includes the VTM127 flush-mount box and the VTM125 aluminum front panel (bezel), providing a clean, secure, and professional recessed installation for 2-module VTO4202F door station configurations. It is ideal for apartment buildings, residential complexes, offices, and commercial applications.

Key Features
- Complete flush-mount kit for 2-module Dahua VTO4202F series
- Includes VTM127 flush-mount box
- Includes VTM125 aluminum front panel (bezel)
- Compatible with all 2-module VTO4202F modular door station configurations
- Durable aluminum construction
- Flush-mount installation for a sleek and integrated appearance
- Silver finish for seamless integration with VTO4202F series
- VTM127 dimensions: 133 × 233.2 × 68 mm
- VTM125 dimensions: 140 × 240.2 × 7 mm
- Ideal for apartment buildings, residential complexes, offices, and commercial video intercom installations

DAHUA VTM128 + VTM126

3-Module Flush-Mount Box with Front Panel for VTO4202F Series

The DAHUA VTM128 + VTM126 is a 3-module flush-mount installation kit designed for the Dahua VTO4202F modular video intercom series. The kit includes the VTM128 flush-mount box and the VTM126 aluminum front panel (bezel), providing a clean, secure, and professional recessed installation for 3-module VTO4202F door station configurations. It is ideal for apartment buildings, residential complexes, offices, and commercial applications.

Key Features
- Complete flush-mount kit for 3-module Dahua VTO4202F series
- Includes VTM128 flush-mount box
- Includes VTM126 aluminum front panel (bezel)
- Compatible with all 3-module VTO4202F modular door station configurations
- Durable aluminum construction
- Flush-mount installation for a sleek, integrated appearance
- Silver finish for seamless integration with VTO4202F series
- VTM128 dimensions: 133 × 333.4 × 68 mm
- VTM126 dimensions: 140 × 340.4 × 7 mm
- Ideal for apartment buildings, residential complexes, offices, and commercial video intercom installations

DAHUA VTM52R2 + VTM125

2-Module Surface-Mount Box with Front Panel for VTO4202F Series

The DAHUA VTM52R2 + VTM125 is a 2-module surface-mount enclosure designed for the Dahua VTO4202F modular video intercom series. The kit includes the VTM52R2 surface-mount box with integrated rain cover and the VTM125 aluminum front panel, providing a robust, weather-resistant, and professional installation for 2-module VTO4202F door stations.

Key Features
- Complete surface-mount kit for 2-module Dahua VTO4202F series
- Includes VTM52R2 surface-mount box with integrated rain cover
- Includes VTM125 aluminum front panel (bezel)
- Compatible with all 2-module VTO4202F modular door station configurations
- Durable AL5052 aluminum construction
- Surface-mount installation
- IP65 weather protection (when installed with silicone sealant)
- Silver finish for seamless integration with VTO4202F series
- Dimensions (VTM52R2): 144.8 × 241.2 × 52 mm
- Ideal for apartment buildings, residential complexes, offices, and commercial video intercom installations

DAHUA VTM05R

Surface-Mount Rain Cover for VTO220xF Series Video Door Stations

The DAHUA VTM05R is a surface-mounted rain cover designed for Dahua VTO220xF series video door stations. It provides effective protection against rain, dust, and harsh weather conditions, helping to extend the service life of the outdoor station while ensuring a clean and professional installation. Manufactured from durable aluminum alloy, it is specifically designed for surface-mounted VTO2202F models.

Key Features
- Surface-mounted rain cover for Dahua VTO220xF series
- Compatible with VTO2202F series video door stations
- Durable aluminum alloy construction
- Silver finish
- Provides protection against rain and outdoor weather conditions
- IP65 protection (when installed with silicone sealant)
- Quick and easy surface-mount installation
- Dimensions: 141.1 × 101.6 × 48.5 mm
- Net weight: 309 g
- Ideal for residential, villa, apartment, and commercial video intercom installations

DAHUA VTM114

Flush-Mount Box for VTO220xF Series Video Door Stations

The DAHUA VTM114 is a flush-mount box designed for Dahua VTO220xF series video door stations. It enables a clean, recessed installation while protecting the door station and ensuring a professional finish. Manufactured from durable ADC12 aluminum alloy, the VTM114 consists of a front frame and rear mounting box for secure in-wall installation. It is compatible with both IP and 2-wire VTO220xF series door stations.

Key Features
- Flush-mount box for Dahua VTO220xF series video door stations
- Compatible with VTO2201F and VTO2202F series
- Includes front frame and rear mounting box
- Durable ADC12 aluminum alloy construction
- Provides a clean and professional recessed installation
- Designed for indoor or outdoor wall mounting
- Quick and secure installation
- Front panel dimensions: 128.9 × 162.9 × 34.5 mm
- Rear box dimensions: 123 × 157 × 35 mm
- Ideal for residential, villa, apartment, and commercial video intercom installations

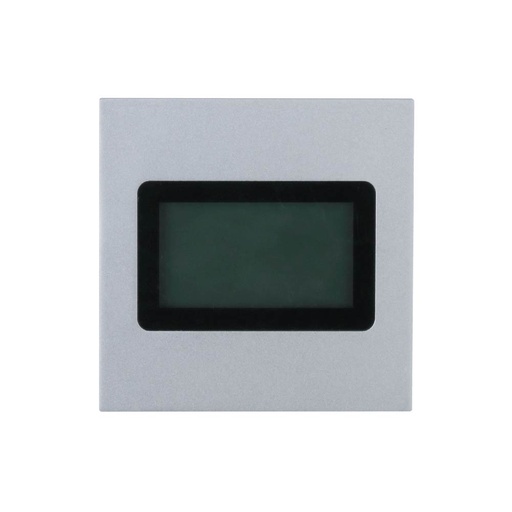

DAHUA DHI-VTO4202F-MS

Display Module for VTO4202F Modular Video Intercom System

The DAHUA DHI-VTO4202F-MS is a display module designed for the Dahua VTO4202F modular video intercom series. It features a high-brightness LCD screen that displays resident names, apartment numbers, directory information, and system messages, making visitor identification and navigation easier. The module integrates seamlessly with the VTO4202F main camera module and supports both surface-mounted and flush-mounted installations.

Key Features
- CD display module for the Dahua VTO4202F modular series
- Displays resident names, apartment numbers, and system information
- Compatible with Dahua VTO4202F-X modular video intercom systems
- Durable aluminum alloy construction
- Powered directly by the main module (5 VDC)
- Supports surface-mount and flush-mount installation
- IP65 weatherproof and IK07 vandal-resistant protection
- Low power consumption (≤ 2 W)
- Dimensions: 100 × 100 × 28.5 mm
- Silver finish for seamless integration with VTO4202F modules
- Ideal for apartment buildings, residential complexes, offices, and commercial applications

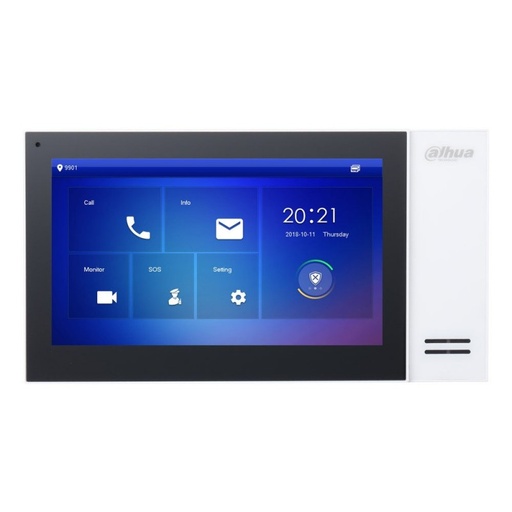

DAHUA DHI-VTH2421FW-P

7" IP Indoor Monitor with PoE – White

The DAHUA DHI-VTH2421FW-P is a 7-inch IP indoor video intercom monitor designed for Dahua SIP video intercom systems. Featuring a 1024 × 600 capacitive touchscreen, Standard PoE, and an embedded Linux operating system, it provides hands-free two-way communication, live video monitoring, remote door unlocking, and alarm integration. Its sleek white design makes it ideal for villas, apartments, offices, and commercial applications.

Key Features
- 7-inch TFT capacitive touchscreen (1024 × 600 resolution)
- Embedded Linux operating system
- Standard PoE (IEEE 802.3af) and 12 VDC power supply
- Hands-free two-way audio with echo cancellation and noise reduction
- Supports SIP-based IP video intercom communication
- Live monitoring of door stations and IP cameras
- Remote door unlocking
- 6 alarm inputs, 1 alarm output, and 1 RS-485 interface
- Built-in 8 GB storage and MicroSD card support up to 32 GB
- Do Not Disturb (DND) mode and message reception
- Wall-mounted installation
- White finish
- Ideal for villas, apartments, residential buildings, offices, and commercial video intercom systems

DC24V/2,5A Din

Étiquette Mifare 13,56 MHz 41 x 31 mm

10 cartes Mifare 1356 (1K) réinscriptibles, épaisseur 0,8 mm

Relais de déverrouillage de porte RS485

Convient à toute porte à cadre s'ouvrant à 180 degrés

Communication sans fil bidirectionnelle 868 MHz

Communication bidirectionnelle stable et sécurisée

Écran LED affichant clairement les informations

Jusqu'à 35 heures d'autonomie après perte de signal : aucune interruption de communication

Détection et connexion automatiques de jusqu'à 8 détecteurs PIRCAM ou de fumée ; appairage automatique intelligent

Installation facile grâce à sa nouvelle conception

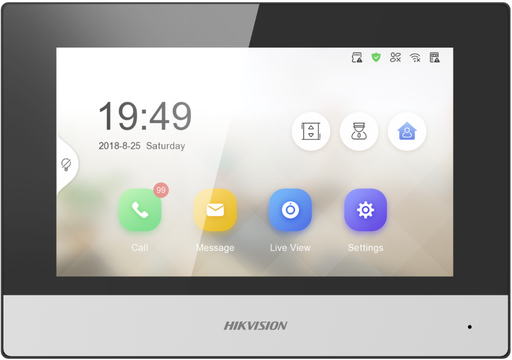

HIKVISION DS-KH6320-WTE1

7" IP Video Intercom Indoor Monitor with Wi-Fi

The HIKVISION DS-KH6320-WTE1 is a 7-inch IP indoor video intercom monitor designed for Hikvision IP video intercom systems. Featuring a 1024 × 600 capacitive touchscreen, built-in Wi-Fi, and hands-free two-way audio, it provides clear visitor communication, remote door unlocking, and live video viewing. Compatible with the Hik-Connect App, it is ideal for homes, villas, apartments, and offices.

Key Features
- 7-inch TFT capacitive touchscreen (1024 × 600)
- Built-in Wi-Fi (IEEE 802.11 b/g/n)
- Standard PoE (IEEE 802.3af) and 12 VDC power supply
- Hands-free two-way audio with echo cancellation
- Remote door unlocking via Hik-Connect App
- Live view of door stations and linked IP cameras
- TF (microSD) card slot, supports up to 32 GB
- 8 alarm inputs, 2 relay outputs, and 1 RS-485 interface
- Surface-mount installation
- Low power consumption (≤ 6 W)

HIKVISION DS-KIS603-S

IP PoE Video Intercom Kit – Villa Solution

The HIKVISION DS-KIS603-S is a complete IP PoE video intercom kit designed for homes and villas. It includes a 2 MP outdoor door station, a 7-inch Wi-Fi touchscreen indoor monitor, a 4-port PoE switch, and installation accessories, providing reliable visitor communication, remote door unlocking, and easy installation via a PoE network. The system also supports remote access through the Hik-Connect App.

Kit Contents
- DS-KV6113-PE1(C) IP outdoor door station
- DS-KH6320-WTE1 7-inch Wi-Fi indoor touch monitor
- 4-port PoE switch
- Installation accessories

Key Features
- Complete IP PoE video intercom kit
- 2 MP HD camera with 131° wide-angle lens
- 7-inch Wi-Fi capacitive touchscreen
- One-touch call button
- Two-way audio with echo cancellation
- Remote answering via Hik-Connect App
- Built-in MIFARE card reader
- Standard PoE support
- IP65 weatherproof outdoor station
- Easy installation and configuration

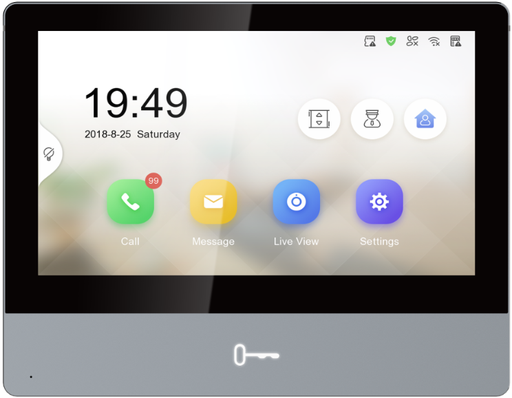

HIKVISION DS-KH8350-WTE1

7" Premium IP Video Intercom Indoor Monitor with PoE & Wi-Fi

The HIKVISION DS-KH8350-WTE1 is a premium 7-inch IP indoor video intercom monitor designed for Hikvision IP video intercom systems. Featuring a 1024 × 600 IPS capacitive touchscreen, built-in Wi-Fi, Standard PoE, and a premium aluminum front panel, it delivers high-quality communication, remote door control, and live video monitoring. Compatible with the Hik-Connect App, it is ideal for homes, villas, apartments, and commercial buildings.

Key Features
- 7-inch IPS capacitive touchscreen (1024 × 600)
- Premium tempered glass and aluminum front panel
- Built-in Wi-Fi (IEEE 802.11 b/g/n)
- Standard PoE (IEEE 802.3af) and 12 VDC power supply
- TCP/IP, SIP, and RTSP communication protocols
- Hands-free two-way audio with echo cancellation
- Remote door unlocking via Hik-Connect App
- Live view of door stations and up to 16 IP cameras
- TF (microSD) card slot, supports up to 128 GB
- 8 alarm inputs, 2 alarm outputs, and 1 RS-485 interface
- Surface or desktop installation
- Red Dot Award-winning ultra-slim design

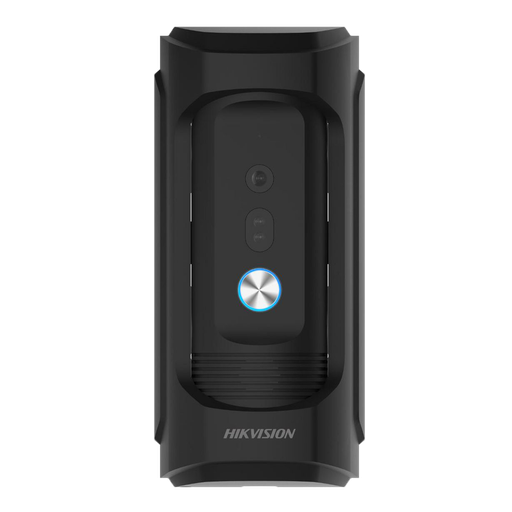

HIKVISION DS-KB8113-IME1

IP PoE Video Door Station – 2 MP

The HIKVISION DS-KB8113-IME1 is a 2 MP IP video door station designed for villas, homes, and small office applications. Featuring a HD camera, Standard PoE, two-way audio, and access control functions, it provides reliable visitor communication and secure door management. Its IP65 weatherproof and IK09 vandal-resistant housing ensures dependable outdoor operation.

Key Features
- 2 MP HD camera with True WDR
- Standard PoE (IEEE 802.3af) and 12 VDC power supply
- Hands-free two-way audio with noise suppression and echo cancellation
- Built-in IR illumination for low-light operation (up to 3 m)
- 1 relay output for door lock control
- 1 alarm input
- Remote configuration via Web interface
- IP65 weatherproof and IK09 vandal-resistant protection
- Surface-mount installation
- Ideal for Hikvision IP video intercom systems

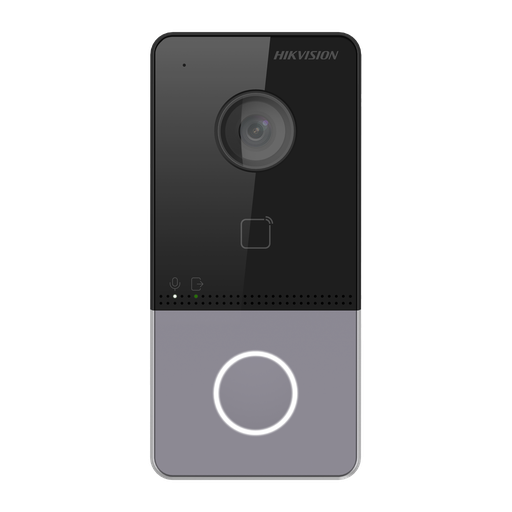

HIKVISION DS-KV6113-WPE1(C)

IP Wi-Fi Villa Video Door Station – 2 MP

The HIKVISION DS-KV6113-WPE1(C) is a 2 MP IP video door station designed for villas, homes, and small office applications. Featuring built-in Wi-Fi, Standard PoE, a 13.56 MHz MIFARE card reader, and Hik-Connect support, it enables remote visitor communication and door control from anywhere. Its compact design and IP65 weatherproof housing make it ideal for modern residential installations.

Key Features
- 2 MP HD camera with 131° horizontal viewing angle
- Built-in Wi-Fi (IEEE 802.11 b/g/n) and 10/100 Mbps Ethernet
- Standard PoE (IEEE 802.3af) and 12 VDC power supply
- Integrated 13.56 MHz MIFARE card reader
- One-touch call button with direct Hik-Connect calling
- Hands-free two-way audio with noise suppression & echo cancellation
- 1 relay output for door lock control
- True WDR and IR illumination (up to 3 m)
- IP65 weatherproof protection
- Surface-mount installation
