SKU: | EAN: 3800131109842


22.80 € 22.8 EUR 23.99 €

19.83 €

    This combination does not exist.

    Add to Cart

    Loading offers

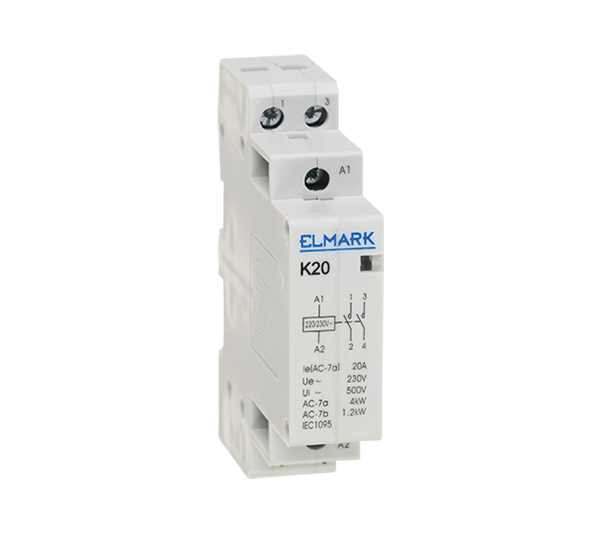

    Technical characteristics of K series:- Rated current: 20-63A- Operation class: АС 7a- Rated operating voltage of the controlling coil: 230V АC;50/60Hz - Rated operating voltage of the power circuit: up to 690V АС- Number of power contacts: 2-4- Insulation voltage : 690V- Surge voltage wear resistance: >8000V- Operating temperature: -10 to +65°C- Maximum altitude: 2000m Advantages:- High reliability of the current parameters- Secure switching ON or separation of the power contacts- Compact sizes- Low levels of operational noise- Options for selection ot the type of power contacts- Resistant to UV rays Functions:- Switching ON/OFF of electrical circuits under load- Developing of systems for control of consumers - Operational element in control boards Applications:- Industry - Administrative and public buildings Mounting: On a DIN rail or vertical position with maximum gradient of ±5° Standards: EN61095; EMC; LVD
