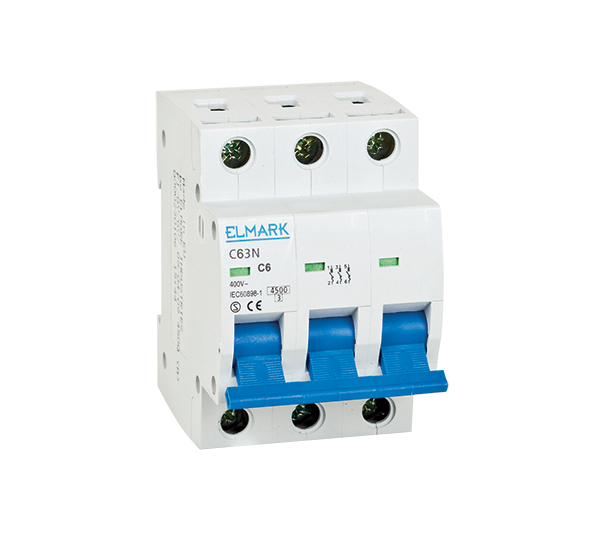

Technical characteristics:- Rated operating voltage: 230/400V; 50/60Hz- Rated current: 1-63А- Breaking capacity: 6000А- Poles: 1, 2, 3, 4- Tripping curve: B, CB - The maximum current release breaks between 3 and 5 In; used to protect long circuits and generatorsС - The maximum current release breaks between 5 and 10 In; used to protect main power supply cables and conventional consumers- Electrical wear resistance (number of cycles): ≥8000- Mechanical wear resistance (number of cycles): ≥50000- Limitation class: 3- IP code: IP>20- Ambient temperature: -5 to +65°С±2°С Mounting: Vertically on a DIN rail Standard: EN60898-1
| Category | 6KA |
