Infrared motion sensor with integrated circuit can detect heat signatures
Adjustable Time Delay - Ambient light - Detection distance for versatile scenarios
High quality receptors for instant functioning
Effective system for energy saving and safety
Compatible with V-TAC models
Packaging
|
|
---|---|
Length Box mm | 85 |
Width Box mm | 60 |
Height Box mm | 85 |
Electricity Specifications
|
|
Rated Load | Max 400W LED |
General specifications
|
|
Dimensions | 445x345x19mm |
Warranty | 2 Years |
Operation Temperature | -25°C to +50°C |
Body Color | Black |
IP Rating | IP44 |
Led Lighting
|
|

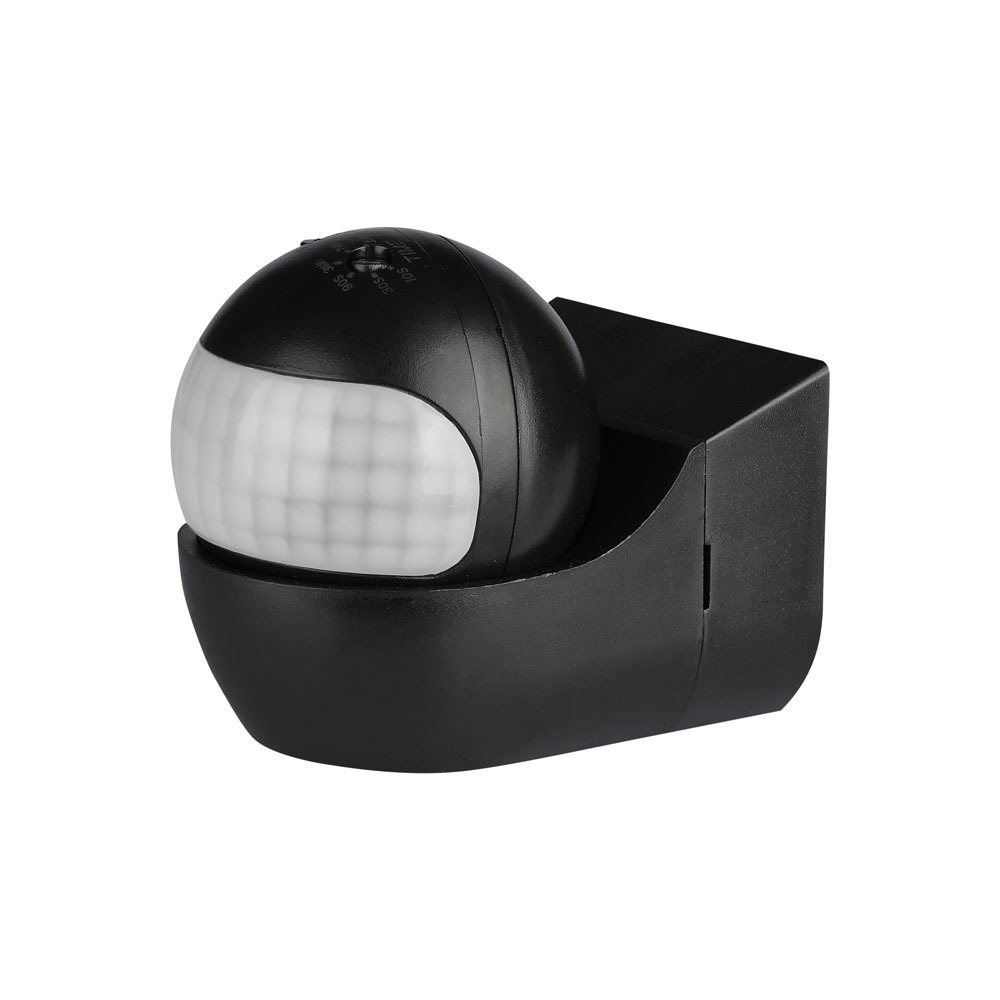

VT-Model | VT-8028-B |
Body Material | PC |
Input Power | AC:200-240V, 50Hz |
Dimmable | N/A |
Installation Type | Surfaced |
Sensor Type | Infrared |
Detection Angle | 180 |
Detection Distance | Max 12m(<24°C) |
Detection Motion Speed | 0.6-1.5m/s |
Detection Range | 360° |
Time Delay | Min 10sec±3sec, Max 15min±2min |
