SKU:
| EAN:
3800157609210

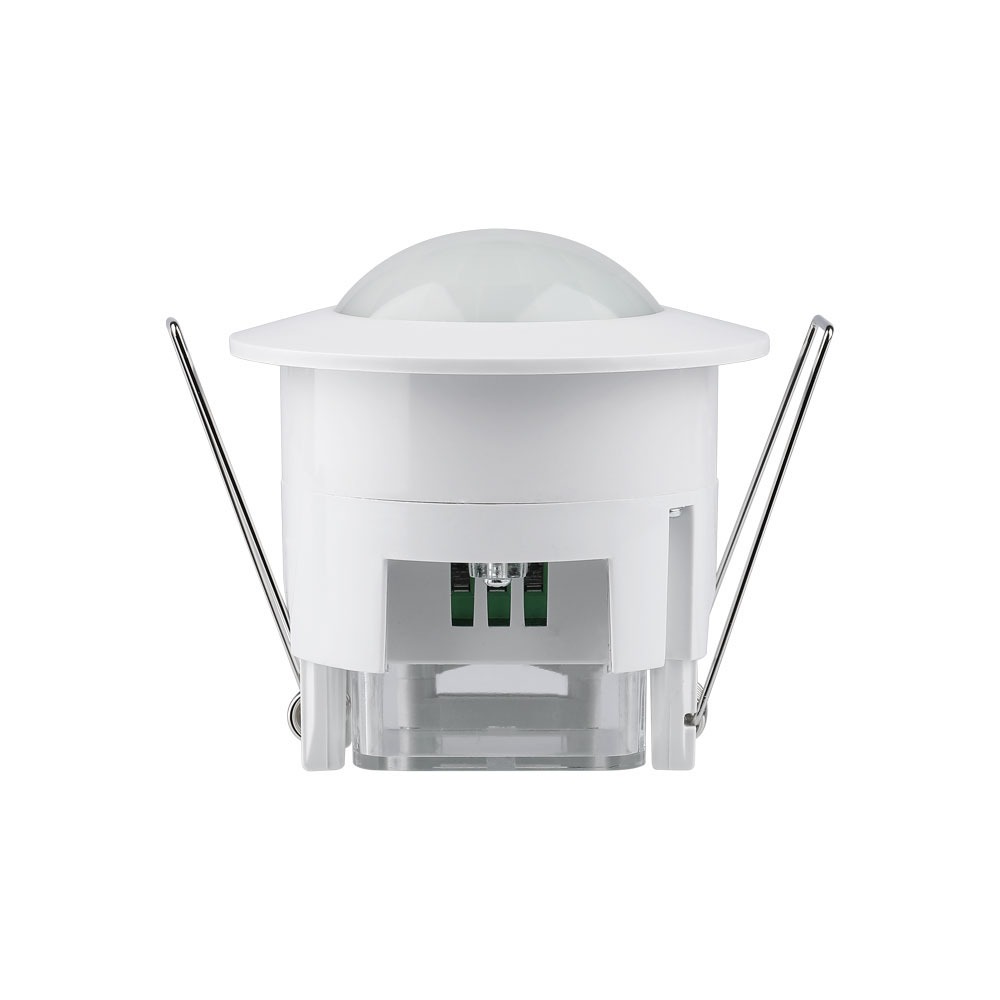

VT-8029 PIR CEILING SENSOR
Infrared motion sensor with integrated circuit can detect heat signaturesAdjustable Time Delay - Ambient light - Detection distance for versatile scenariosHigh quality receptors for instant functioningEffective system for energy saving and safetyCompatible with V-TAC models
|
Packaging
|
|
|---|---|
| Length Box mm | 100 |
| Width Box mm | 78 |
| Height Box mm | 82 |
|
Electricity Specifications
|
|
| Rated Load | Max 300W LED |
|
General specifications
|
|
| Dimensions | 76x75.6mm |
| Warranty | 2 Years |
| Operation Temperature | -25°C to +50°C |
| Body Color | White |
| IP Rating | IP20 |
| Material | PC |
|
Led Lighting
|
|
| VT-Model | VT-8029 |
| Input Power | AC:200-240V, 50Hz |
| Dimmable | N/A |
| Installation Type | Recessed |
| Sensor Type | Infrared |
| Detection Angle | 360(Ceiling) 150(Wall Mounted) |
| Detection Distance | Max 6m(<24°C) |
| Detection Motion Speed | 0.6-1.5m/s |
| Detection Range | 360° |
| Time Delay | Min 10sec±3sec, Max 15min±2min |
