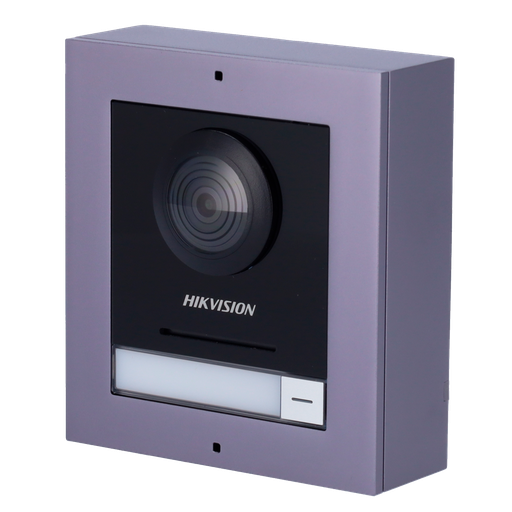

HIKVISION DS-KD8003-IME1(B)

IP PoE Modular Video Door Station – 2 MP

The HIKVISION DS-KD8003-IME1(B) is a modular IP video door station designed for homes, villas, apartment buildings, and commercial applications. Equipped with a 2 MP fisheye camera, two-way audio, and PoE support, it delivers high-quality video communication, secure access control, and seamless integration with Hikvision IP video intercom systems. Its modular design allows expansion with additional functional modules to meet various installation requirements.

Key Features
- 2 MP HD fisheye camera with 146° horizontal viewing angle
- IP communication with Standard PoE (IEEE 802.3af) or 12 VDC
- Built-in microphone and speaker with echo cancellation
- One physical call button
- Supports up to 8 modular expansion units
- 2 lock relay outputs and 4 alarm inputs
- Web-based configuration and remote management
- IP65 weatherproof protection
- Tamper alarm for enhanced security
- Surface or flush mounting (with compatible mounting accessories)

Hikvision
IP video door entry system with 2 MP camera
Wide-angle lens
Built-in speaker and microphone
Infrared night vision
TCP/IP connection
Powered via standard PoE
Remote monitoring via iVMS-4200 software, the Hik-Connect mobile app (via a monitor), or an indoor monitor
Remote door opening
Mount with surface-mounted bracket (included)
Backlit nameplate
Suitable for outdoor use (IP65)
Can be integrated with Hikvision modules

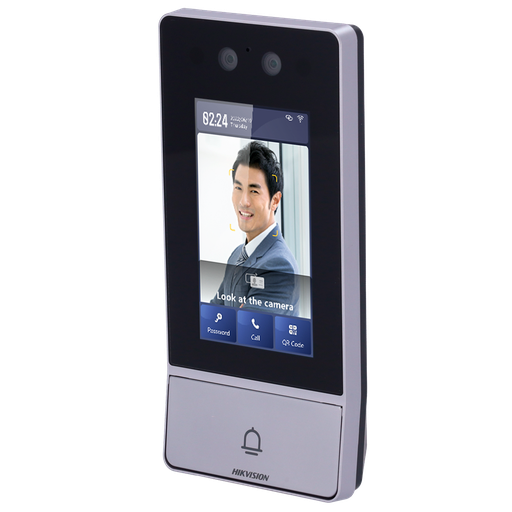

Vandal-resistant metal IP villa door station with facial recognition
4.3-inch color LCD screen with 800 × 480 resolution
2 × 2 MP cameras with IR enhancement
One-touch physical button for easier calling
Standard PoE power supply
Superior protection rating IK08 & IP65
Multiple authentication methods: Face, PIN, card, QR code, Bluetooth
Call directly via the Hik-Connect app without an indoor station

7-inch TFT touch screen with 1024 × 600 resolution
Convenient Hik-Connect APP Mobile Control
Receive calls, open the door and live view remotely
Easy to use without PC
Easy wizard for quick set up
Configure the whole system on one touch screen
Live view of the door station and cameras in public areas
Support voice messages when no response from the indoor station
Receive alarms by linkage with an alarm system and notify the center to handle in time
Elevator access control

IP video intercom system for villas or houses
One-button call for simplified calls
Convenient mobile control via the Hik-Connect app
Includes: 1x Hikvision DS-KV6113-WPE1(C) Villa door station, 1x DS-KH6320-WTE1 monitor, 1x DS-KABV6113-RS security device, 1x 5-port PoE switch

7-inch IPS touch screen with 1024 × 600 resolution
Reddot award winner
Convenient Hik-Connect APP Mobile Control
Receive calls, open the door and live view remotely
Easy to use without PC
Easy wizard for quick set up
Configure the whole system on one touch screen
Rich functions and extensions
Live-view of the door station and cameras in public areas
Support voice messages when no response from the indoor station
Receive alarms by internal alarm terminals
Elevator access control

DS-KB8113-IME1(B)
Vandal-resistant doorbell
2MP HD camera with IR boost for excellent image quality
Supports standard PoE power supply
Supports mechanical doorbell for easier calling
Convenient Hik-Connect mobile app control: Receive calls, open the door, and view live video remotely
Supports web configuration
Higher protection rating: IK09 and IP65

Wifi support (Only available in DS-KV6113-WPE1 model), convenient setting up and no wiring required
Web configuration support
Nice industry design, IP65, 2 indicators integrated
Internal Mifare card reader, 1-ch Indoor station access control
Noise suppression and echo cancellation
2MP HD Camera with IR supplement
Standard PoE/12 VDC

10.1 inch IPS touchscreen with resolution: 1280×800
Up to 128 network cameras can be added to the device
Built-in SIP private server, up to 10000 video intercom devices can be added
Supports more than 2 speakers and microphones: connects to external earphone (3.5mm), external gooseneck microphone
Display operation pages via HDMI
Power supply: standard PoE and 12 VDC
Video intercom and access control functions

Video intercom kit
2-wire technology with TCP/IP and Wi-Fi
Outdoor station and monitor | Supports 1 monitor only
Easy-to-configure firmware (no network required)
Mobile app with P2P
Surface or flush mounting (IP65)

HIKVISION DS-KIS604-S(C)

IP PoE Video Intercom Kit – Villa Solution

The HIKVISION DS-KIS604-S(C) is a complete IP video intercom kit designed for homes and villas. It includes a 2 MP outdoor door station, a 7-inch Wi-Fi touchscreen indoor monitor, a 4-port PoE switch, and a 16 GB microSD card, providing secure visitor communication, remote door unlocking, and convenient management through the Hik-Connect App.

Kit Contents
- DS-KV8113-WME1(C) IP outdoor door station
- DS-KH6320-WTE1 7-inch Wi-Fi indoor touch monitor
- 4-port PoE switch
- 16 GB microSD card
- Administrator card
- 5 × MIFARE key fobs
- Power supply
- Rain shield and installation accessories

Key Features
- Complete IP PoE video intercom kit
- 2 MP HD camera with 124° wide-angle view
- 7-inch Wi-Fi capacitive touchscreen
- One-touch call button
- Built-in MIFARE card reader
- Two-way audio with echo cancellation
- Remote answering via Hik-Connect App
- IP65 weatherproof outdoor station
- Standard PoE support for easy installation

Wifi support, convenient setting up and no wiring required
Web configuration support
Aluminum alloy, Nice industry design, IP65, IK08, 3 indicator integrated
Internal Mifare card reader, 1-ch Indoor station access control
Noise suppression and echo cancellation
2MP HD Camera with IR supplement
Standard PoE/12 VDC

7-inch colorful touch screen with resolution 1024 × 600
Remote temperature screening & records checking, real time preview
Centralized data management, max to 100,000 records
Abnormal temperature alarm
Remote access control & video intercom

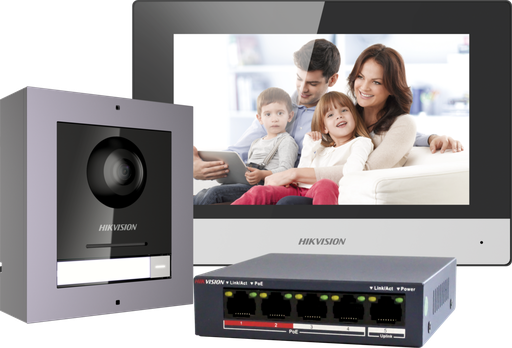

HIKVISION DS-KIS602(B)

IP Video Intercom Kit – Villa & Residential Solution

The HIKVISION DS-KIS602(B) is a complete IP video intercom kit designed for single-family homes, villas, and small residential buildings, providing secure visitor communication, remote door control, and high-definition video monitoring in one ready-to-install package.

The kit includes a 2 MP IP outdoor door station, a 7-inch indoor touch monitor, a 4-port PoE switch, and a 16 GB microSD card, offering a complete solution for modern residential access control.

The outdoor station features a 2 MP HD camera with a 146° horizontal viewing angle, IR illumination for night vision, WDR, 3D noise reduction, and motion detection, ensuring clear images in various lighting conditions. It is rated IP65 for reliable outdoor operation.

The indoor station is equipped with a 7-inch capacitive touchscreen with a 1024 × 600 resolution, providing intuitive operation for answering calls, viewing live video, unlocking doors, and managing visitors. Built-in Wi-Fi allows flexible network connectivity, while the Hik-Connect mobile application enables remote answering and door release from anywhere.

The system supports two-way audio communication with noise suppression and echo cancellation, delivering clear conversations between indoor users and visitors. It also supports H.264/H.265 video compression, TCP/IP, RTSP, and ONVIF, ensuring compatibility with modern IP video systems.

Designed for quick deployment, the DS-KIS602(B) is an ideal solution for installers seeking a reliable, expandable, and user-friendly IP video intercom system.

Kit Contents
DS-KD8003-IME1(B) IP Outdoor Door Station (Surface Mount)
DS-KH6320-WTE1 7-inch Indoor Touch Monitor
4-port PoE Switch
16 GB microSD Card
Power Adapter and Installation Accessories

Key Features
Complete IP video intercom kit for single-family homes
2 MP HD outdoor camera with 146° wide-angle lens
7-inch capacitive touchscreen indoor monitor
1024 × 600 display resolution
Built-in Wi-Fi on indoor monitor
Two-way audio with noise suppression and echo cancellation
Remote access and door unlocking via Hik-Connect App
IP65 weatherproof outdoor station
4-port PoE switch included
16 GB microSD card included
H.264 / H.265 video compression
Supports TCP/IP, RTSP, and ONVIF protocols

HIKVISION DS-KV8213-WME1/S
IP Villa Video Door Station – Surface Mount, 2 Buttons, PoE & Wi-Fi
The HIKVISION DS-KV8213-WME1/S is a 2-button IP video door station designed for villas, duplex homes, and small residential buildings. Featuring a 2 MP HD camera, built-in Wi-Fi, Standard PoE, and an integrated 13.56 MHz MIFARE card reader, it provides secure visitor communication and flexible access control. With 2 relay outputs, Hik-Connect support, and a durable aluminum alloy housing, it is ideal for modern residential installations.

Key Features
- 2 MP HD camera with 129° horizontal viewing angle
- 2 physical call buttons
- Built-in Wi-Fi (2.4 GHz) and 10/100 Mbps Ethernet
- Standard PoE (IEEE 802.3af) and 12 VDC power supply
- Integrated 13.56 MHz MIFARE card reader
- 2 relay outputs for door lock control
- Hands-free two-way audio with noise suppression & echo cancellation
- True WDR and IR illumination (up to 3 m)
- IP65 weatherproof and IK08 vandal-resistant protection
- Surface-mount aluminum housing
- Remote management via Web interface and Hik-Connect

2 MP camera with IR supplement
Four nametag buttons calling design for easier calls
Built-in card reader module
Standard PoE power supply
IK08 & IP65 higher protection level with aluminum alloy material
Convenient Hik-Connect APP mobile control

10.1-inch colorful touch screen with 1024 × 600 resolution
Built-in Android System
Supports Android APP installation
Support for three-party software integration
Built-in Hik-Connect APP
For all-in-one management of Hikvision’s devices on table

2-Wire HD Video Intercom Kit
The HIKVISION DS-KIS702 is a complete 2-wire IP video intercom kit designed for homes and villas. It includes a 2 MP outdoor door station, a 7-inch Wi-Fi touchscreen indoor monitor, a 2-wire distributor, and a power supply, providing a simple plug-and-play installation with remote access via the Hik-Connect App
To prevent interference and voltage drops, Hikvision imposes strict rules regarding cable type: Single pair: If you use a multi-pair cable (such as a network or telephone cable), you must use only one twisted pair for the signal. Doubling the wires (connecting two wires together for positive and two for negative) is strictly prohibited, as this destroys the stability of the digital signal.
Recommended cable type: Ideally, use two-wire, shielded twisted-pair cable.

Cost-effective indoor station without screen
Standard PoE power supply without additional power adapter
Convenient for users to customize functions according to their own usage habits by 4 custom touch buttons

Video Intercom Table Bracket

This mount allows you to install the Hikvision DS-KH6320Y-WTE2 and DS-KH8520-WTE1 screens from Hikvision's modular intercom system on a desk or shelf if you do not wish to mount it on the wall.
The screen simply sits on this mount.

Material : SUS430, silica gel
Colour : Silver grey
Working temperature : -10 °C to +55 °C (14 °F to 131 °F)
Working humidity : 10% to 90%
Dimension (W, H , D) : 122 × 86 × 64 mm (4.80" × 3.39" × 2.52")
Weight : 110 grams
