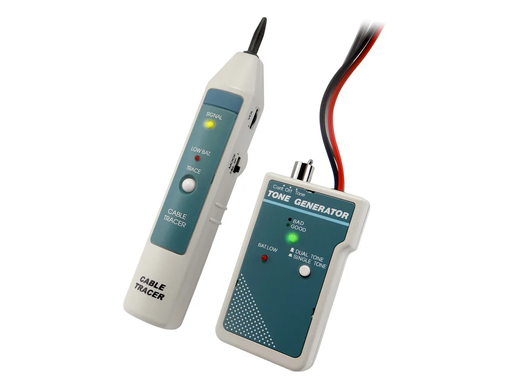

This cable detection and testing device, consisting of a tone generator and a probe (cable detector), is a very practical aid for cable installation and troubleshooting.
The probe tests for continuity and assignment or determines line polarity and voltage for network / telephone cables.
The Tone Generator sends a signal to the connected line, the probe searches for the corresponding line at the other end; indication both by LED and acoustically.
The probe (cable locator) has a special inductive plastic tip to prevent unintentional short circuits in the vicinity of high voltage equipment
The Tone Generator can send single tone and multiple tone signals
Battery for the cable detector: 1x 9V block (6LR61 / AM-6)
Battery for the tone generator: 1x 9V block (6LR61 / AM-6)
Contents: Tone Generator, sample, bag, operating instructions

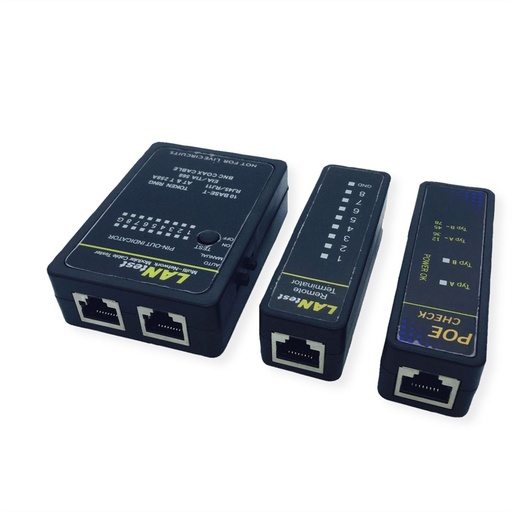

Continuity testing of coax cables with BNC connectors and 8-pole data lines w. fitted RJ-45 connectors
The device recognizes open and short-circuited (wire/wire or wire/shield) connections
A two-line display (LEDs) indicates sequentially which pin of the RJ-45 connector at cable end A is connected with which pin at cable end B and manual or automatic switch advancing is possible; in the case of a short-circuit more than two LEDs light up simultaneously
The device has 2 RJ-45 sockets; with the supplied Remote Kit cables laid in the wall can also be tested
Two adapter cables (BNC/RJ-45) are supplied for testing coax cables
PoE check - the PoE Finder allows the newtork administrator to find out if a network cable is supplied via PoE. Just plug in the network cable that has to be tested. The LED of the PoE finder will shine if the cable is supplied with power.
Battery (not included in delivery): 1x E-block 9V (6LR61/AM-6)

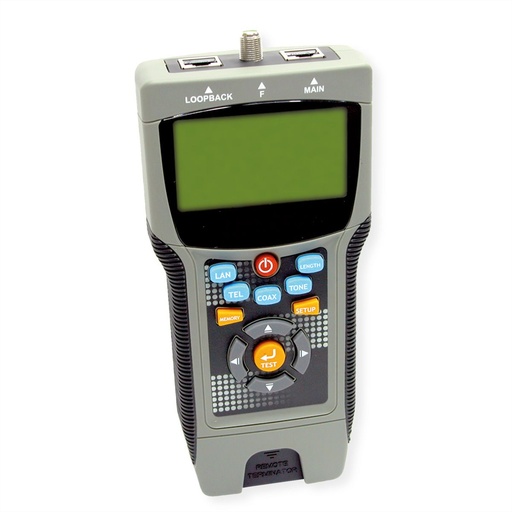

The tester can check UTP and STP (e.g. Cat.5e, Cat.6/6a...) and coaxial cables
It can identify and locate the distance to an open or short circuit
Uses TDR (Time Domain Reflectometer) to measure the length and distance to the defective of a cable
Identification of wiring and pin assignment
LCD backlight display

Manufacturer: VALUE
Product Group: Tester
Product Type: Cable Tester
Color: Multicolor
Accessories: Required Battery/Rechargeable Battery: 9V Block Battery, 1x
Height: 104 mm
Width: 78 mm
Depth: 33 mm
Weight: 202.1 g
Package Height: 60 mm
Package Width: 190 mm
Package Depth: 260 mm
Package Weight: 0.28 kg
Gross Weight: 0.28 kg
Current Catalog Edition: 20
Current Catalog Page: 12.002

The SMARTone is a revolutionary network installation and trouble shooting tool, it goes entirely above and beyond the traditional methods to trace and identify cables.
Uses digital signal technology, avoiding noise and false signals
Traces and identifies cables quickly and accurately
Traces cables at a distance
Identifies cables in bundles or at patch panels
Sends digital/analogue tones in two distinct modes: one note–tone and two note–tone
Receiving tone sensitivity level: 9 levels
LED Bar and speaker are used as indicators
Can use probe to trace traditional 1kHz analogue tone
Cable map: pin–to–pin test for cable opened/shorted/reversed/crossed/mis–wired
Telephone service and polarity test: +polarity; –polarity; ringing
Probe has an adjustable speaker volume level suitable for various work environments
Auto Power–off and low battery indicator
Complied with IEEE802.3af standard
Output power: 5V
Voltage protection: 100V (TEL Check)
Tone frequency: Encoded digital tone signal; Legacy 1KHz analogue tone signal
Power supply and life: 9V square battery; the power consumption is less than 15mA
Auto power off: Auto power off after 30 min. without using.
Dimension: 104 x 63 x 25mm
Weight: 108g

The INNOTEST is the innovation test equipment on today’s market. It is the first module design economic tester. The module of INNOTEST can be removed and replace with the connector type that you need. You can also purchase module separately without the main unit for cost saving. INNOTEST not only test each pins connection to identify open wires, shorted wires, cross wires, and mis–wires. It also shows pin–to–pin connectivity of your cable.
Removable module design, easy for connector repair and update in the future
Auto pins detect and connector identify
Identify open wires, shorted wires, cross wires, and mis–wires connectivity
Support 32 types of connectors
Alphanumeric LCD display
Control switch: NEXT, ENTER, EXIT
Display: LCD size, 4 rows–16 characters
Battery: AAA 1.5V X 3
