Empty housing with 12 ports
Ideally suited for desktop/under-table mounting or for wall mounting
Small footprint and maximum flexibility
Note: Keystones are not included. Please order separately!

Compatible with all snap-in connectors (keystones), which can be easily inserted/removed by a simple one click movement.
Box for 4 modules
Hinged lid
Cable openings at front protected by hinged cover and rear with dust protection cover
Material: steel
Color: black
Space saving, easy to mount

Keystone with two HDMI F/F sockets
Ideal for home offices, conference rooms and classrooms
For use with HDMI cables
Maximum supported resolution: 4K60

Shielded RJ-45 connector for extending twisted pair cables
Suitable for Keystone panels and junction boxes
Suitable for Cat.6A cabling up to 500 MHz
Entire metal housing for signal protection against electromagnetic interference
8 contacts, 1:1 connected
Narrow form factor for space-constrained environments

Shielded RJ-45 coupler for extending Cat.6 Twisted Pair cables
Keystone version
8 contacts, 1:1 connected
Metal housing

⦁ Assembled double shielded (PiMF) twisted pair cable made of solid wire in category 6A with shielded RJ-45 connectors on both sides.
⦁ Suitable for connecting external components (e.g. IP cameras), but also for PoE applications or as TP extension cable in multimedia applications
⦁ UV - resistant
⦁ Durable thanks to molded bend protection
⦁ Contact assignment: 1:1 according to EIA/TIA568, 8 cores
⦁ Construction: 8 cores solid wire. Pair shielding: aluminum-clad polyester foil. Overall shielding: copper braiding
⦁ High quality gold plated contacts

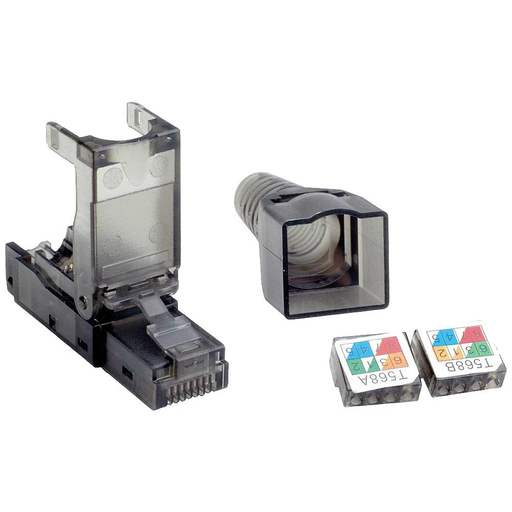

Fast and easy tool-free installable unshielded RJ45 connector
Cat.6/Class E performance according to ISO/IEC11801 and IEC60603-7
Compact cable manager for round Solid cable AWG 23-26(1/0.41-1/0.575mm) and stranded cable AWG 24-26(7/0.16-7/0.20mm)
For cable with outer diameter OD: 6.0 - 9.0mm
Pair management according to TIA 568B and TIA 568A color codes
Strain relief with cable tie and black transparent dust cup and boot
Color: Transparent black

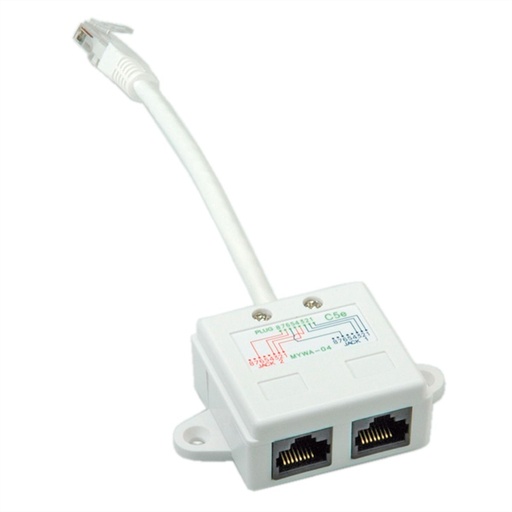

For the use with two 10/100 LAN connections over one (full wired) 8-wire cable
Connection cable (17 cm) with RJ-45 plug; adapter with two RJ-45 jacks
Pin assignment of connectors: pairs 1, 2 and 3, 6
Wiring scheme on the adapter
For Cat. 5th facilities
Note: The adapters can be used only pairwise

The VALUE 21.99.3005 cable gender changer features two RJ-45 connectors, allowing for easy connection between devices. Its black color provides a sleek look, while the durable design ensures long-lasting use. Ideal for networking applications, this gender changer is perfect for adapting cable connections without the need for additional adapters.

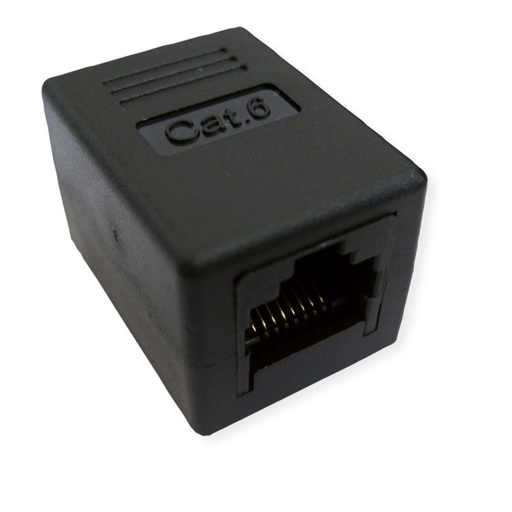

Unshielded in plastic housing
The couplers are able to extend Cat. 6 cables
8 contacts, 1:1 connected

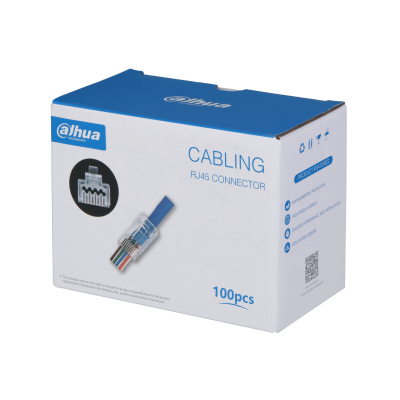

"> Unshielded RJ-45 CAT6 connector.
> Designed with a cable pass-through hole.
> Constructed with trident brass sheet and 15U gold plating.
> 750-cycle lifespan.

Lot de 2 pièces, conçu pour les modèles emballés à plat 711777, 711784, 711791 et 711807 de Intellinet Network Solutions

19-inch support bracket for DIN rail devices with up to 3U, cable management and removable metal cover
Support frame for the installation/use of DIN rail-mounted electrical equipment e.g. network switches, media converters...
With removable metal cover
DIN rail can be adjusted horizontally
Cable management possibility at the rear side of the frame
Max. load capacity 6 kg

Cat6A U/FTP cable
Stable electrical performance, compliant with ANSI/TIA-568.2-D, IEC61156, ISO/IEC11801.
Compliant with RoHS 2.0.
Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project.
Excellent performance in the Fluke 90-meter permanent link test while working continuously at 50°C high temperature.
Excellent performance in the Fluke 100-meter channel test while being continuously loaded with 57 V/1 A DC power (PoE).
Solid-Bare Copper conductor with less resistance, and better electrical properties and transmission performance.
Reaction to CPR fire Classification：Cca s1 d1 a1.
Good shielding performance.

100 meters/box
Impedance: 100 Ohm
Construction:
- 8 lines, solid copper wire, AWG22
- pairs shielded with aluminum foil
- complete shielding in AL-MG braid
Color: gray
CPR-Dca-S2,d1,a1

For a Cat.8 channel link S/FTP Cabling we recommend to use the following components:

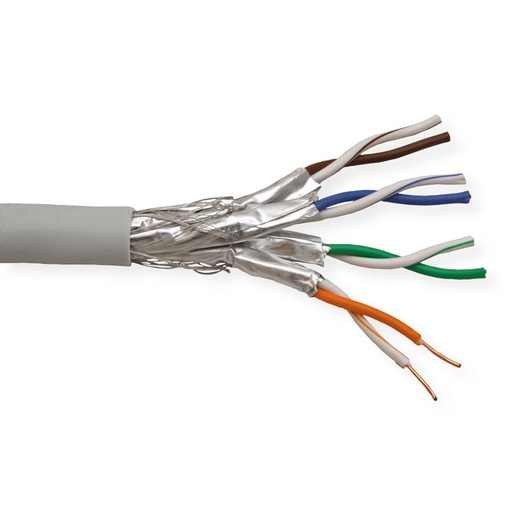

21.99.1800 VALUE S/FTP Cable, Cat.8, Solid Wire, AWG22
21.99.1807 VALUE Cat.8 RJ45 Keystone, Jack, toolless
21.99.1804 VALUE Cat.8 Shielded Field Connector RJ45 plug
21.99.1801 to 21.99.1803 VALUE S/FTP Patch Cable Stranded Cat.8, gray (1m to 3m)
The advantages of Category 8 cabling:
- Category 8 offers four times the bandwidth of Category 6A cabling, specified up to 2 GHz.
- Category 8 cables are shielded, though shielded cabling systems must be grounded, this is also not an issue in most data centers, since the connections are closer together.
- Category 8 connectors use the familiar RJ45 interface. The jacks require proper grounding to the cable and to the device they are installed into (patch panel or outlet), therefore they are designed for field termination.
- Category 8 number of connectors is limited to two connectors in the copper channel (excluding connections on end equipment), this is typically adequate in a data center environment and many common enterprise links.
- Maximum reach: 30 meters of channel (maximum 24m link cable + 2x 3m patch cables).
