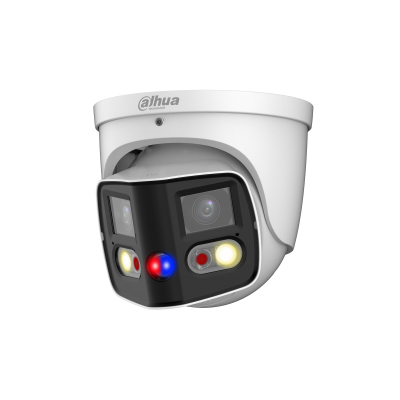

IPC-PDW3849-A180-AS-PV Dahua IP Camera ONVIF PoE 8 megapixels panoramic eyeball multi fixed lens 2.8mm and multi sensor (Dual CMOS 1/2.7"), H.265+. IR 2 LED 20M, 2 LED Warm Light 20M, Day/Night (ICR), Siren and Lights - Active Deterrence, WDR 120dB, E-PTZ, MicroSD Slot, Dual microphone, Audio, Alarm, IVS (perimeter protection), IP67

•H.265+ •2HDD •16CH POE •16ch@1080P Decode

•H.265+ •2HDD •8CH POE •16ch@1080P Decode

•H.265+ •2HDD •16CH POE •8ch@1080P Decode

8 Channel 1U 2HDDs 8PoE Network Video Recorder

> New 4.0 user interface, Security baseline 2.1
> H.264, H.265, Smart H.264+, and Smart H.265+. H.265 auto switch

> Max. decoding capability: 8 × 1080p@30 fps. Supports adaptive decoding

> Supports mainstream cameras of ONVIF and RTSP protocols

> P2P remote surveillance, video play on mobile device

> VGA/HDMI simultaneous video output, maximum resolution of HDMI is 4K

> AI by Camera: Face detection, perimeter protection, IVS, people counting, heat map, and SMD

> Supports remote configuration and management of IPC, such as set ting parameters, getting information, and upgrading IPC of the same model in batches

•H.265+ •1HDD •8CH POE •8ch@1080P Decode

•H.265+ •1HDD •8CH POE•4ch@1080P Decode•AI

Dahua X-Spans Series 4MP 25X Smart Dual Light Network Panoramic PTZ Camera with 100° overview camera, auto tracking, perimeter protection, object classification, false alarm filter, light and audio alarm, IR 100m, IP66

•8MP Motorized •H.265+ •120dB WDR •IR Up to 50m •SD Card •IP67 •Metal

•4MP Motorized •H.265+ •120dB WDR •IR Up to 40m •SD Card •IP67 •IK10 •Metal

8MP, 1/2.7" CMOS image sensor, low illuminance, high image definition
Max outputs 8MP (3840 × 2160) @15 fps, and supports 2688 × 1520 (2688 × 1520) @25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in IR LED, max IR distance: 30m
ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire
Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
Max supports 256 GB Micro SD card, built-in MIC
12V DC/PoE power support
IP67 protection

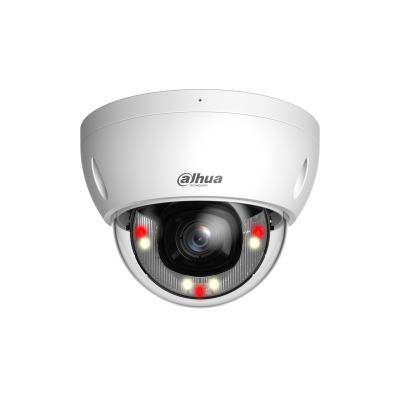

DH-IPC-HDBW2849EP-S-IL-0280B
8MP Smart Dual Light Fixed-focal Dome WizSense Network Camera

8-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
Outputs max. 8 MP (3840 × 2160) @20 fps, and supports 2560 × 1440@25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED and warm light , the max. IR illumination distance is 30 m and the max. warm light distance is 30 m.
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Supports max. 256 G Micro SD card; built in Mic.
12 VDC/PoE power supply, easy for installation.
IP67, IK10 protection.
SMD Plus.

•5MP •H.265+ •120dB WDR •IR Up to 30m •SD Card •Mic •IP67 •Metal

Series Overview
With features of simple installation, easy operation, and high
performance-cost ratio, Dahua Entry series network camera is
applicable to small and medium-sized scenes, such as homes/
residences, small-sized retail stores, and other small and mediumsized enterprises.

Functions
Smart Dual Light
Dahua Smart Dual Light technology adopts smart algorithm to detect
targets. Usually, the IR illuminator is on at night; when the target
appears in the monitoring area, the white light is on, and the camera
records the full-color video and information of key events. That is,
the camera links snapshot and video with full-color image. When the
target is out of the monitoring area, the white light is off and the IR
illuminator is on, which reduces light pollution efficiently.
Human Detection
Dahua intelligent algorithms extract moving human targets from
videos and filters out alarms that are triggered by non-human targets
to increase the accuracy and effectiveness of alarms.
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart
encoding technology realizes the higher encoding efficiency than
H.265 and H.264, provides high-quality video, and reduces the cost
of storage and transmission.

Image Flip
For narrow and long scenes, Dahua image flip technology flips the
image by 90°/180°/270° to realize better surveillance in rotation mode

•4MP FULL COLOR •H.265+ •WDR •LED Up to m •IP67 •Metal

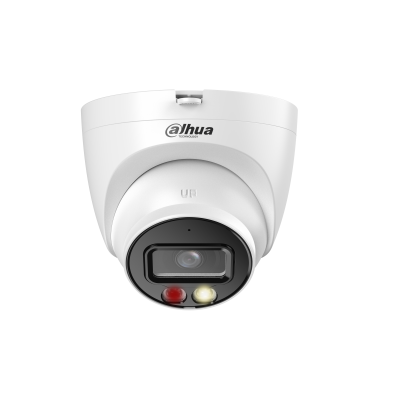

5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
Built-in IR LED and warm light, and the max. IR illumination distance is 30 m, the max. warm light distance is 30 m.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Supports max. 256 G Micro SD card; built-in Mic; built-in speaker; support two-way talk.
12 VDC/PoE power supply, easy for installation.
IP67 protection.
Sound and light alarm.
SMD Plus.

> Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format
> Access, storage or forwarding at 256 Mbps (160 Mbps when AI function enabled)
> Max. decoding capability: 10 × 1080p@30 fps. Supports adaptive decoding
> AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus
> AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map
> Security baseline 2.1

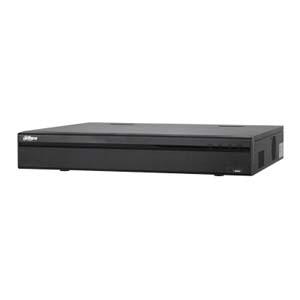

The NVR5416-16P-4KS2 IP Recorder is a 16-camera NVR.

With 16 POE ports for charging cameras via RJ45.

Up to 12MP Ultra 4K resolution.

With a high bandwidth of 320 Mbps.

Capable of running 4 discs 24/7.

· 16/32-channel IP video access
· Smart H.265+/Smart H.264+/H.265/H.264; H.265 auto switch
· Max 200 Mbps incoming bandwidth
· Up to 8MP resolution for preview and playback
· 8-channel decoding@1080p (30 fps)
· AI by Camera: Perimeter protection; SMDPlus; people counting; heat map
· Support IPC UPnP, 16 PoE ports

Smart H.265+ / H.265 / Smart H.264+ / H.264
Maximum incoming bandwidth of 200 Mbps
Resolution up to 8MP for preview and playback
Decoding up to 2 channels at 4K / 8 channels at 1080P
Simultaneous HDMI / VGA video output
Supports UPnP, 16PoE IPC ports
