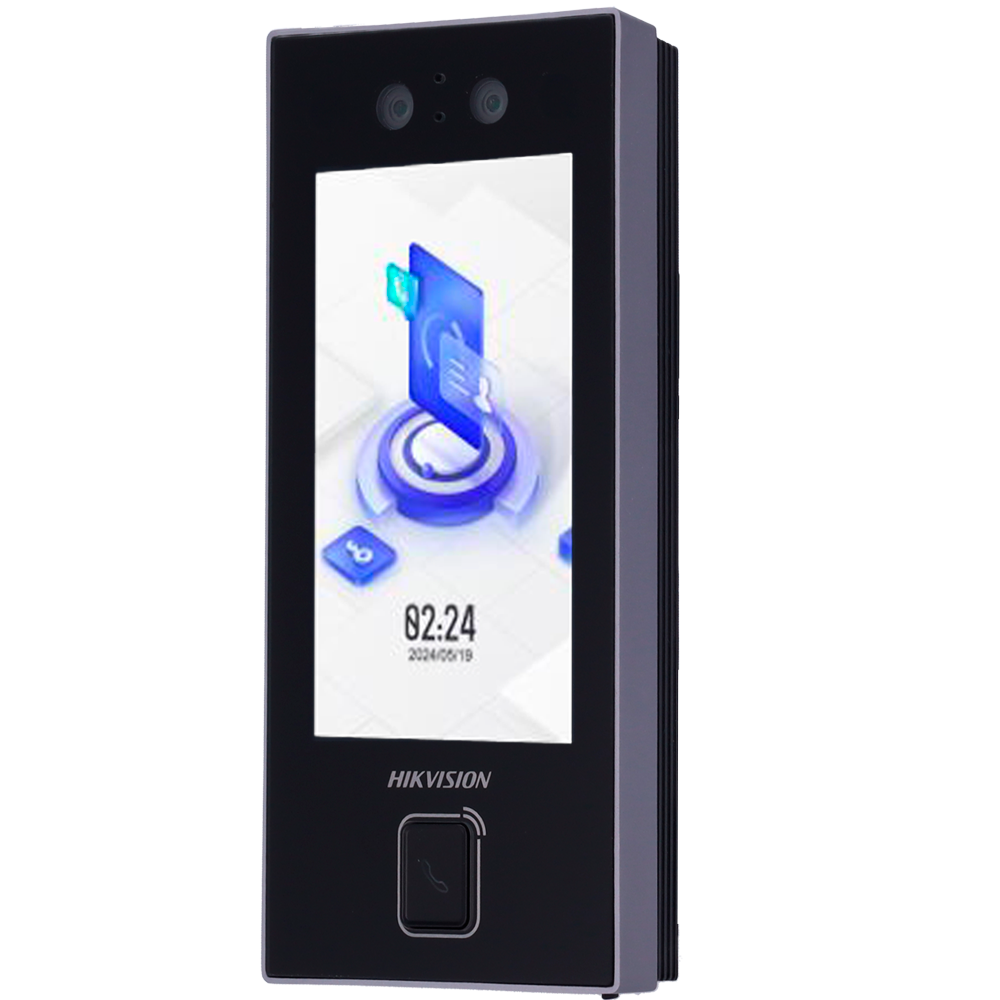

HIKVISION DS-K1T344MBFWX-E1 IP65 Access and Presence Control Facial Recognition, MF Card, Fingerprint and PIN without call buttons

Hikvision DS-K1T344MBFWX-E1 – Face & Biometric Access Control Terminal (Value Series)  .

The Hikvision DS-K1T344MBFWX-E1 is an advanced standalone access control and time & attendance terminal that combines face recognition, fingerprint, MIFARE card, QR code, and PIN authentication in a single rugged device. Designed for reliable identification and secure access, this terminal is suitable for both indoor and outdoor installations thanks to its IP65-rated housing and flexible connectivity options.

Key Features :

• Multi-modal authentication: Facial recognition, fingerprint, MIFARE (13.56 MHz) card, QR code, and PIN code, or combinations thereof for secure and flexible access control.

• High performance face recognition: Dual-sensor 2 MP camera with anti-spoofing technology, recognition time < 0.2 s per person, accuracy > 99%, and effective detection distance 0.3 – 1.5 m.

• Large user and event capacity: Stores up to 3,000 faces, 3,000 fingerprints, 3,000 cards/credentials, and 150,000 event logs for comprehensive access and attendance tracking.

• 4.5″ color touch screen: Intuitive touch LCD display (480 × 854) for easy local operation and configuration.

• Integrated controller: Includes lock relay output, door sensor input, exit button input, tamper detection, and Wiegand support for direct door control.

• Rich connectivity: TCP/IP, Wi-Fi, USB, RS-485, and Wiegand interfaces for integration with access control systems, software, and third-party devices.

• PoE and power support: Standard PoE (IEEE802.3af) and 12 V DC power options; can also supply 12 V to electric locks when PoE-powered.

• Network and software integration: Works with iVMS-4200 / AC access management software and Hik-Connect mobile app for remote management, user configuration, and event monitoring.

• Outdoor-ready: IP65 rating protects against dust and water, enabling installations in exterior environments, with operating temperatures from about -30 °C to +60 °C.

• Additional functions: Bidirectional audio and optional video door entry capabilities; Bluetooth and dynamic QR features supported when used with HikCentral.
