HIKVISION DS-K1T344MBWX-E1 IP65 Access and Presence Control - Facial Recognition, Microfibre Card and PIN - Call Button

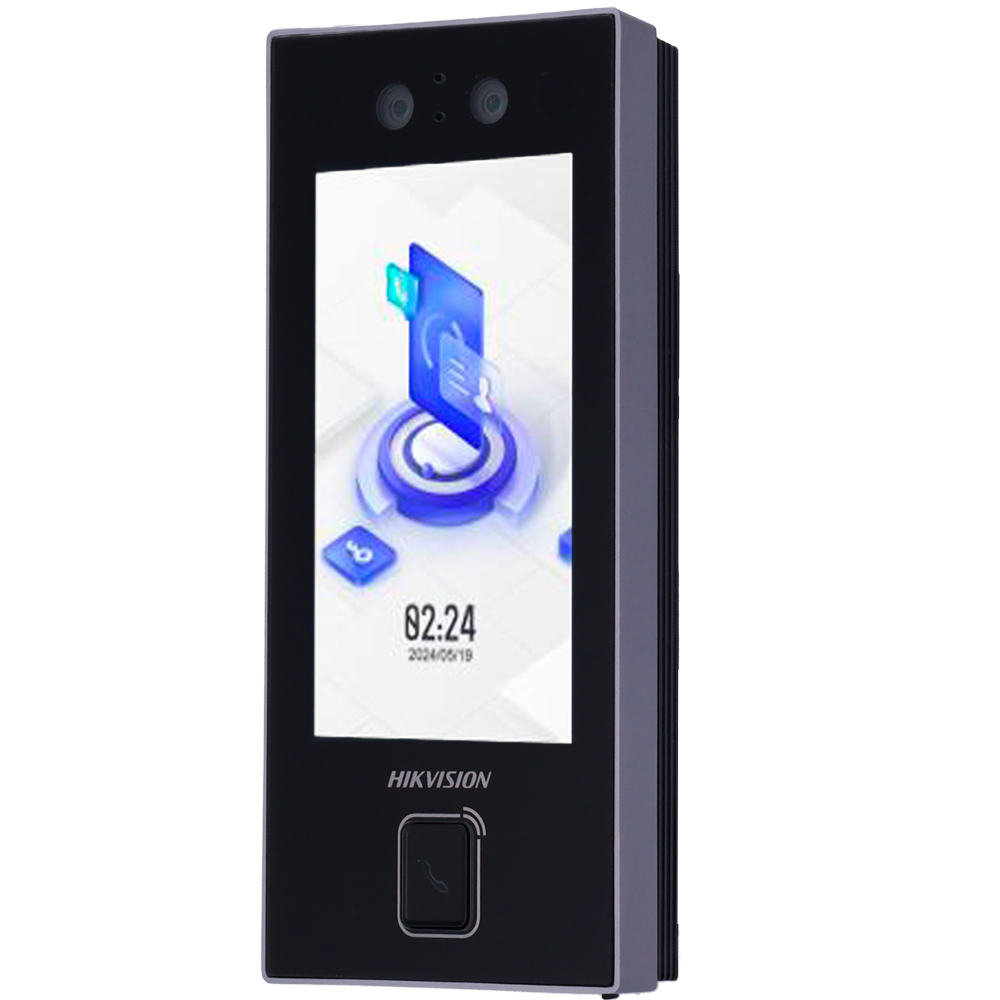

 Hikvision DS-K1T344MBWX-E1 – Value Series Face & Multi-Mode Access Control Terminal .

The Hikvision DS-K1T344MBWX-E1 is a powerful all-in-one access control and time & attendance terminal from Hikvision’s Value Series, featuring advanced face recognition, MIFARE card, QR code, and PIN authentication with flexible connectivity. Its robust design, intuitive touch display, and embedded controller make it suitable for both indoor and outdoor access control applications in offices, commercial buildings, residential properties, and other controlled environments.

Key Features :

• Multi-modal authentication: Supports face recognition, MIFARE (13.56 MHz) card, PIN code, QR code, and Bluetooth (via HikCentral) for flexible verification modes.

• Fast and accurate face recognition: Dual 2 MP wide-angle cameras with anti-spoofing technology; recognition time < 0.2 s per user with > 99 % accuracy and effective distance of ~0.3 – 1.5 m.

• Large capacity: Stores up to 3,000 faces, 3,000 cards, and 150,000 event records for comprehensive user management and logging.

• 4.5″ color touch display: High-resolution 480 × 854 LCD touchscreen for easy operation and clear visual feedback.

• Integrated controller: Built-in lock relay, exit button, door contact input, tamper detection, and Wiegand interface for direct door control.

• Rich connectivity: Ethernet (10/100 Mbps), PoE (IEEE802.3at) support, Wi-Fi, Bluetooth, RS-485, USB, and Wiegand for flexible system integration.

• Two-way audio: Supports bidirectional audio communications when connected to client software or indoor/outdoor stations.

• Mobile & web configuration: Manage users and settings via mobile web or PC web interface without additional software.

• Outdoor protection: IP65 rating protection against dust and water for reliable outdoor use; operational temperature range approx. -30 °C to +60 °C.

• Power options: Supports standard PoE power with lock power output (12 VDC / 1 A) and also 12 V DC input.
