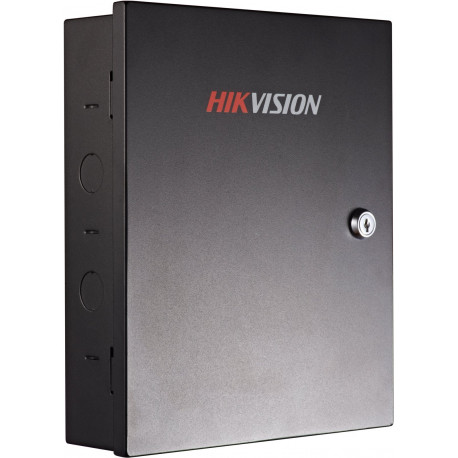

HIKVISION DS-K2801 TCP/IP Access Controller - 1 Door 2 Readers ( Wiegand )

data-start="167" data-end="245">Hikvision DS‑K2801 – Value Series 1‑Door Network Access Control Controller

The Hikvision DS‑K2801 is a reliable single‑door access control controller from Hikvision’s Value Series, designed to manage secure and efficient card‑based entry for small to medium‑sized access control installations. It supports network communication via TCP/IP and offers both online and offline operation, making it ideal for offices, commercial sites, and secured facilities requiring dependable access management.

Equipped with a 32‑bit high‑speed processor and ample on‑board storage, the DS‑K2801 can maintain up to 10,000 card credentials and 50,000 event logs, ensuring extensive record‑keeping and responsive performance. The controller integr

ates with Wiegand standard card readers and provides essential I/O support for locks, exit buttons, door contacts, and alarms, enabling complete control of a single door entry point.

Key Features:

• Single‑door access controller from Hikvision Value Series

• Network communication via TCP/IP for system integration and remote management

• Supports connection of up to 2 Wiegand readers (W26/W34)

• Stores up to 10,000 authorized cards and 50,000 event records

• Inputs: 1 × exit button, 1 × door contact, and optional case/tamper input

• Outputs: 1 × lock relay control, 1 × alarm relay

• Alarm reporting: supports door alarms and event upload

• Built‑in clock and offline operation capability

• Operating temperature range: ‑20 °C to +65 °C

• Power supply: 100–240 VAC (internal PSU)

• Dimensions: approx. 285 × 237 × 69 mm

• Ideal for single‑door access control in commercial and professional environments
