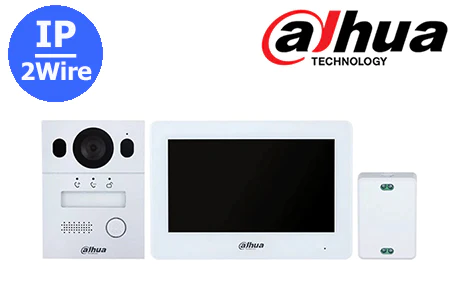

DAHUA DHI-KTX01

Hybrid 2-Wire Video Intercom Kit with Wi-Fi & DMSS App

The DAHUA DHI-KTX01 is a hybrid 2-wire video intercom kit designed for villas, homes, and small office applications. The kit includes a 2 MP outdoor video door station (DHI-VTO2003F), a 7-inch Wi-Fi indoor monitor (DHI-VTH2123GW-W), and a 2-wire controller (VTNC1003C). It offers HD video, hands-free two-way audio, remote mobile access via the DMSS App, and plug-and-play installation over existing 2-wire cabling, making it an excellent solution for both new installations and renovations.

Key Features
- Complete hybrid 2-wire video intercom kit
- 2 MP HD outdoor station with aluminum alloy front panel
- 7-inch capacitive touchscreen indoor monitor with built-in Wi-Fi
- Compatible with the DMSS mobile application for remote calls and door unlocking
- 2-wire communication for simple retrofit installations
- Hands-free two-way audio with echo cancellation and noise reduction
- Remote door unlocking from the monitor or DMSS App
- Supports video recording and snapshot capture (MicroSD card required)
- Connects to HDCVI cameras for additional video monitoring
- Outdoor station with IP65 weatherproof and IK07 vandal-resistant protection
- Supports surface or flush mounting
- Plug-and-play installation using the included 2-wire controller (48 VDC)

DAHUA KTP01
IP PoE Villa Video Intercom Kit – Outdoor Station & Indoor Monitor

The DAHUA KTP01 is a complete IP PoE video intercom kit designed for villas, homes, and small office applications. It includes a 2 MP outdoor video door station and a 7-inch color indoor monitor, providing HD video, hands-free two-way audio, and remote door unlocking. With PoE connectivity, mobile app support, and easy installation, it offers a reliable and intelligent access control solution.

Key Features
- Complete IP PoE video intercom kit for villas
- 2 MP HD outdoor video door station
- 7-inch color capacitive touchscreen indoor monitor
- Standard PoE (IEEE 802.3af) network connectivity
- Hands-free two-way audio with echo cancellation
- Remote door unlocking via indoor monitor and mobile app
- Supports remote video calls and live monitoring
- H.264 video compression for efficient transmission
- Surface-mount installation
- Ideal for residential homes, villas, and small offices

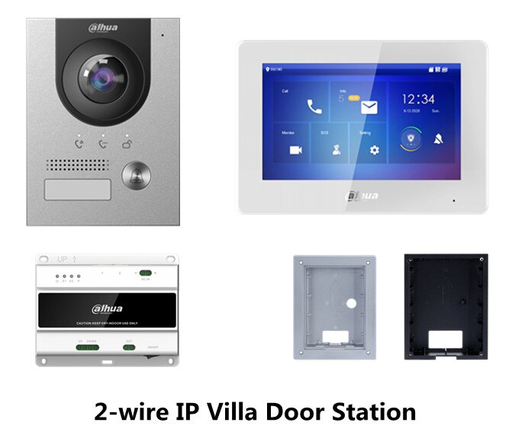

DAHUA KTD01

IP 2-Wire Video Intercom Kit – Surface/Flush Mount

The DAHUA KTD01 is a complete IP 2-wire video intercom kit designed for villas, homes, and small office applications. The kit includes a 2 MP outdoor video door station, a 7-inch capacitive touchscreen indoor monitor, and a 2-wire networking controller, providing HD video, hands-free two-way audio, and remote door unlocking. It supports standard PoE, 2-wire digital communication, and installation in either surface-mounted or flush-mounted configurations.

Key Features
- Complete IP 2-wire video intercom kit
- 2 MP HD outdoor station with 168.6° ultra-wide viewing angle
- 7-inch TFT capacitive touchscreen indoor monitor (1024 × 600)
- Digital 2-wire communication with daisy-chain topology
- Standard PoE or 2-wire power supply
- Remote door unlocking via indoor monitor and DMSS mobile app
- Hands-free two-way audio with echo cancellation and noise reduction
- Supports H.265/H.264 video compression
- Outdoor station rated IP65 weatherproof and IK07 vandal-resistant
- Surface or flush mounting installation
- Ideal for villas, residential homes, and small office applications

DAHUA DHI-VTO2202F-P-S3

2-Wire / IP Video Door Station – Surface or Flush Mount

The DAHUA DHI-VTO2202F-P-S3 is a 2-wire/IP video door station designed for villas, homes, and small office applications. Featuring a 2 MP HD camera, 2-wire digital communication, Standard PoE, and remote access via the DMSS mobile app, it provides secure visitor management and flexible installation for both new and retrofit projects. Its surface or flush-mount design and IP65/IK07 protection make it ideal for outdoor environments.

Key Features
- 2 MP HD camera with 168.6° ultra-wide viewing angle
- Supports Digital 2-Wire IP communication and Standard PoE (IEEE 802.3af/at)
- Remote video calls and door unlocking via the DMSS mobile app
- Hands-free two-way audio with echo cancellation and noise reduction
- 12 VDC / 600 mA power output for external devices
- Supports H.265 and H.264 video compression
- MicroSD card support up to 256 GB (for local storage where supported by the system)
- 1 relay output for door lock control
- RS-485 interface, alarm input/output, exit button input, and door status detection
- IP65 weatherproof and IK07 vandal-resistant protection
- Surface or flush-mount installation
- Anodized aluminum front panel for enhanced durability

DAHUA KTW01-S2

Wireless Wi-Fi IP Video Intercom Kit – 12 VDC

The DAHUA KTW01-S2 is a wireless IP video intercom kit designed for villas, homes, and small office applications. The kit includes a 2 MP Wi-Fi outdoor video door station (DHI-VTO2211G-WP-S2) and a 7-inch Wi-Fi indoor monitor (DHI-VTH5221DW-S2). It delivers HD video, hands-free two-way audio, remote door unlocking, and mobile access via the DMSS App, making it an ideal smart home access solution.

Key Features
- Complete wireless IP video intercom kit
- 2 MP HD outdoor station with 125° wide-angle camera
- 7-inch capacitive touchscreen indoor monitor (1024 × 600)
- Built-in Wi-Fi (2.4 GHz) for the outdoor station and indoor monitor
- Compatible with the DMSS mobile app for remote calls, live video, and door unlocking
- Hands-free two-way audio with echo suppression and noise reduction
- Supports RFID card access (up to 10,000 cards)
- 12 VDC power supply (PoE also supported by both devices)
- Outdoor station rated IP65 weatherproof
- Surface-mounted installation
- Ideal for villas, residential homes, and small office applications

DAHUA DHI-KTX03

Hybrid 2-Wire Video Intercom Kit with Wi-Fi & DMSS App

The DAHUA DHI-KTX03 is a hybrid 2-wire video intercom kit designed for villas, homes, and small office applications. The kit includes a metal outdoor video door station with keypad (DHI-VTO2023S), a 7-inch Wi-Fi indoor monitor (DHI-VTH2123GW-W-S2), and a 2-wire controller (VTNC1003C-D). It supports HD video, two-way audio, remote mobile access via the DMSS App, and easy installation using existing 2-wire cabling.

Key Features
- Complete hybrid 2-wire video intercom kit
- 2 MP HD outdoor station with metal front panel and keypad
- 7-inch capacitive touchscreen indoor monitor with built-in Wi-Fi
- Compatible with the DMSS mobile application for remote calls and door unlocking
- 2-wire communication for easy retrofit installations
- IC card, PIN code, and remote door unlocking
- Hands-free two-way audio with echo cancellation and noise reduction
- Supports video recording and snapshot capture (MicroSD card required)
- Outdoor station rated IP65 weatherproof and IK08 vandal-resistant
- Supports connection to HDCVI cameras for additional monitoring
- Surface-mounted installation
