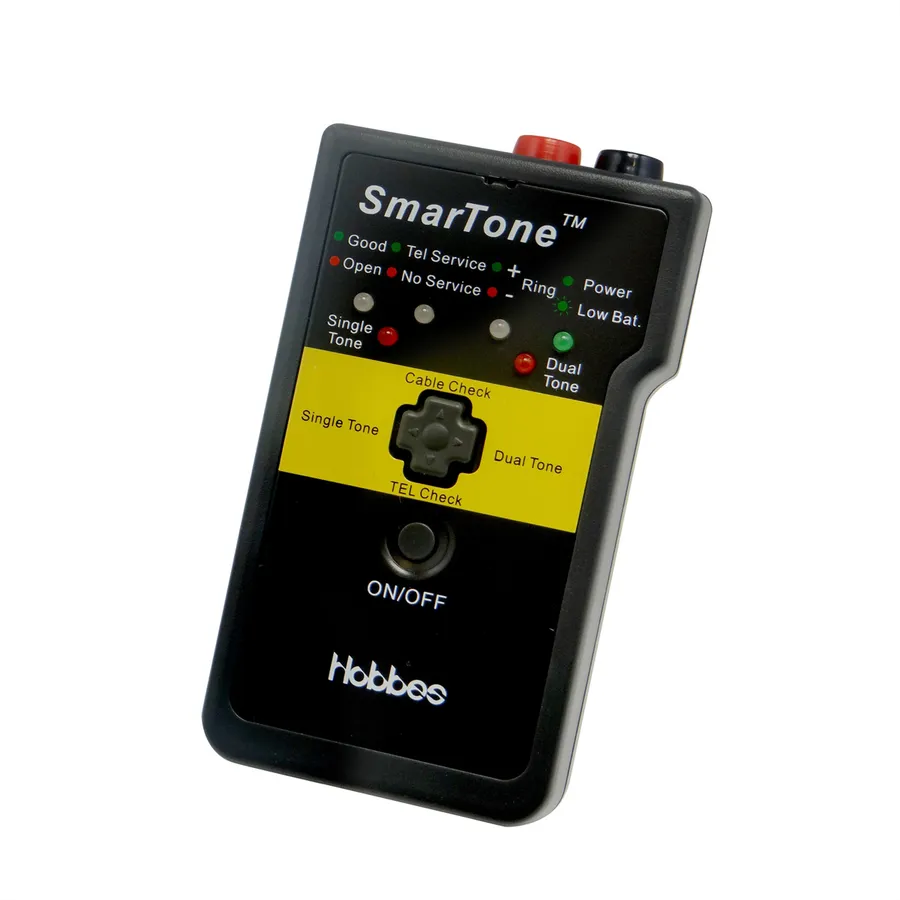

HOBBES SMARTone, Digital Cable Locator Tone Generator

The SMARTone is a revolutionary network installation and trouble shooting tool, it goes entirely above and beyond the traditional methods to trace and identify cables.
Uses digital signal technology, avoiding noise and false signals
Traces and identifies cables quickly and accurately
Traces cables at a distance
Identifies cables in bundles or at patch panels
Sends digital/analogue tones in two distinct modes: one note–tone and two note–tone
Receiving tone sensitivity level: 9 levels
LED Bar and speaker are used as indicators
Can use probe to trace traditional 1kHz analogue tone
Cable map: pin–to–pin test for cable opened/shorted/reversed/crossed/mis–wired
Telephone service and polarity test: +polarity; –polarity; ringing
Probe has an adjustable speaker volume level suitable for various work environments
Auto Power–off and low battery indicator
Complied with IEEE802.3af standard
Output power: 5V
Voltage protection: 100V (TEL Check)
Tone frequency: Encoded digital tone signal; Legacy 1KHz analogue tone signal
Power supply and life: 9V square battery; the power consumption is less than 15mA
Auto power off: Auto power off after 30 min. without using.
Dimension: 104 x 63 x 25mm
Weight: 108g

Hobbes
