This cable detection and testing device, consisting of a tone generator and a probe (cable detector), is a very practical aid for cable installation and troubleshooting.
The probe tests for continuity and assignment or determines line polarity and voltage for network / telephone cables.
The Tone Generator sends a signal to the connected line, the probe searches for the corresponding line at the other end; indication both by LED and acoustically.
The probe (cable locator) has a special inductive plastic tip to prevent unintentional short circuits in the vicinity of high voltage equipment
The Tone Generator can send single tone and multiple tone signals
Battery for the cable detector: 1x 9V block (6LR61 / AM-6)
Battery for the tone generator: 1x 9V block (6LR61 / AM-6)
Contents: Tone Generator, sample, bag, operating instructions

Continuity testing of coax cables with BNC connectors and 8-pole data lines w. fitted RJ-45 connectors
The device recognizes open and short-circuited (wire/wire or wire/shield) connections
A two-line display (LEDs) indicates sequentially which pin of the RJ-45 connector at cable end A is connected with which pin at cable end B and manual or automatic switch advancing is possible; in the case of a short-circuit more than two LEDs light up simultaneously
The device has 2 RJ-45 sockets; with the supplied Remote Kit cables laid in the wall can also be tested
Two adapter cables (BNC/RJ-45) are supplied for testing coax cables
PoE check - the PoE Finder allows the newtork administrator to find out if a network cable is supplied via PoE. Just plug in the network cable that has to be tested. The LED of the PoE finder will shine if the cable is supplied with power.
Battery (not included in delivery): 1x E-block 9V (6LR61/AM-6)

The tester can check UTP and STP (e.g. Cat.5e, Cat.6/6a...) and coaxial cables
It can identify and locate the distance to an open or short circuit
Uses TDR (Time Domain Reflectometer) to measure the length and distance to the defective of a cable
Identification of wiring and pin assignment
LCD backlight display

Manufacturer: VALUE
Product Group: Tester
Product Type: Cable Tester
Color: Multicolor
Accessories: Required Battery/Rechargeable Battery: 9V Block Battery, 1x
Height: 104 mm
Width: 78 mm
Depth: 33 mm
Weight: 202.1 g
Package Height: 60 mm
Package Width: 190 mm
Package Depth: 260 mm
Package Weight: 0.28 kg
Gross Weight: 0.28 kg
Current Catalog Edition: 20
Current Catalog Page: 12.002

Double-shielded installation cable (PiMF)
Impedance: 100 Ohm
Color: Gray
Construction: 8-core, solid copper, pair-shielded with aluminum foil, full braid shield
Fire protection class: DCa

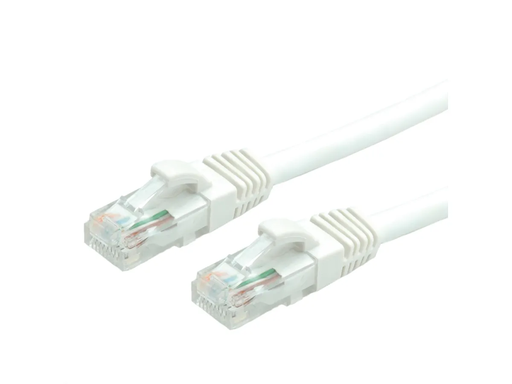

Cat.6A (Class EA) / 10 Gigabit UTP Cable. The low-cost solution for Cat.6a cabling with data rates up to 10Gbps. Patch cable with RJ-45 connectors.

The cheap solution for data transfer rates of up to 10 Gbit/s and a bandwidth of 500 MHz
Prepared shielded Twisted Pair cable (PiMF) with RJ-45 connectors on both ends.

The cheap solution for data transfer rates of up to 10 Gbit/s and a bandwidth of 500 MHz
Prepared shielded Twisted Pair cable (PiMF) with RJ-45 connectors on both ends.

Prepared double shielded Twisted Pair cable with screened RJ-45 connectors on both ends
Suitable for PoE applications and multimedia applications were the extension is working over TP
High quality plugs with gold plated contacts

Toolless mounting - without using a LSA tool: cable wires are simply placed into the guides of Keystone module, the module is closed and compressed - the connection is ready for use
Cat.6A Keystone Jack (Module) STP
Fully shielded Housing(zinc alloy)
360 degree fully shielded
Slim guy
With internal plastic shutter, black
180 degree cable entry
Support PoE per IEEE 802.3af, PoE+ per IEEE 802.3at
For cables with AWG 22-24 (0.45-0.65mm)
For cables with OD: 5.0-8.5mm
Color code on the Keystone jacks based on the standard EIA/TIA 568 A & B
Dimensions (L x W x H): 37.9×15.8×22.2mm
Color: silver

The cables are connected to the keystones without tools - the cable cores are simply inserted into the guides; the module is closed and compressed - the connection is ready
Keystones with printed color coding according to EIA / TIA 568
The Keystone modules can be latched into a 19" module carrier (26.11.0360 / 26.11.0359 or 26.99.0331 / 26.99.0332) with earthing connection. Or they become a junction box together with a module holder 25.16.8579
The VALUE Cat.6A/Class EA 19" keystones meet the transmission requirements of a Cat.6A/Class EA Link
The particularly slim design offers you considerable advantages in high-density network environments

Unshielded construction
Color code on the keystone jacks is based on the standard EIA/TIA 568 A and 568 B
Toolless installation
Color: white

Empty housing with 12 ports
Ideally suited for desktop/under-table mounting or for wall mounting
Small footprint and maximum flexibility
Note: Keystones are not included. Please order separately!
