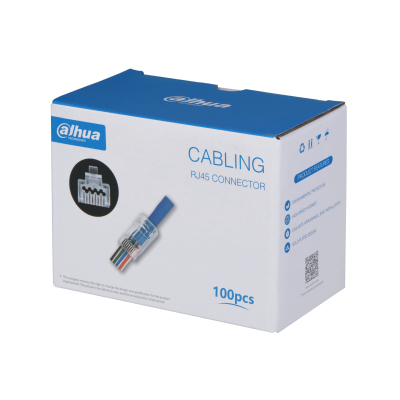

"> Unshielded RJ-45 CAT6 connector.
> Designed with a cable pass-through hole.
> Constructed with trident brass sheet and 15U gold plating.
> 750-cycle lifespan.

Lot de 2 pièces, conçu pour les modèles emballés à plat 711777, 711784, 711791 et 711807 de Intellinet Network Solutions

19-inch support bracket for DIN rail devices with up to 3U, cable management and removable metal cover
Support frame for the installation/use of DIN rail-mounted electrical equipment e.g. network switches, media converters...
With removable metal cover
DIN rail can be adjusted horizontally
Cable management possibility at the rear side of the frame
Max. load capacity 6 kg

Cat6A U/FTP cable
Stable electrical performance, compliant with ANSI/TIA-568.2-D, IEC61156, ISO/IEC11801.
Compliant with RoHS 2.0.
Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project.
Excellent performance in the Fluke 90-meter permanent link test while working continuously at 50°C high temperature.
Excellent performance in the Fluke 100-meter channel test while being continuously loaded with 57 V/1 A DC power (PoE).
Solid-Bare Copper conductor with less resistance, and better electrical properties and transmission performance.
Reaction to CPR fire Classification：Cca s1 d1 a1.
Good shielding performance.

16 x Gigabit Ethernet port
Supports IEEE 802.3, IEEE 802.3u and IEEE 802.3x
Gigabit network access
Wire-speed forwarding and non-blocking design
Store-and-forward switching
Solid high-strength metal shell
Fan-free design with high reliability

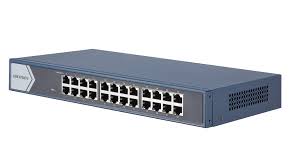

24 x Gigabit Ethernet port
Supports IEEE 802.3, IEEE 802.3u and IEEE 802.3x
Gigabit network access
Wire-speed forwarding and non-blocking design
Store-and-forward switching
Solid high-strength metal shell
Fan-free design with high reliability

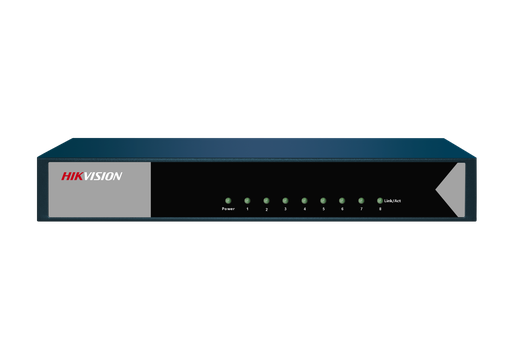

8 × Gigabit Ethernet port
Supports IEEE 802.3, IEEE 802.3u and IEEE 802.3x.
Gigabit network access
Wire-speed forwarding and non-blocking design
Store-and-forward switching
Solid high-strength metal shell
Fan-free design with high reliability
Datasheet

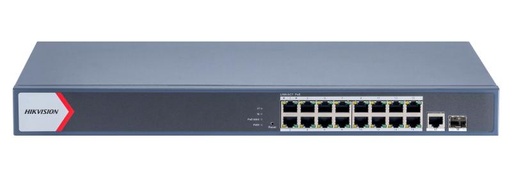

Hikvision Smart Managed 16-Port Gigabit PoE Switch, L2 switch, avec 16 port 10/100/1000 gigabit PoE et 1 port SFP gigabit , budget PoE total de 225 Watt, max 30w par port, support pour montage rack inclus

16 ports 10/100 /1000 Mbit, 16 ports PoE (IEEE802.3af/at) max. 30 Watt par port , budget PoE 225 Watt, 1 x SFP port gigabit , desktop

8 × 10/100 Mbps PoE port, and 2 × Gigabit RJ45 port.
IEEE 802.3at/af standard for PoE ports (Max. 60 W PoE output).
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.
6 KV surge protection for PoE ports.
Up to 300 m long-range transmission.
Wire-speed forwarding.
Store-and-forward switching.
Solid high-strength metal shell.
Reliable fan-free design.

100 meters/box
Impedance: 100 Ohm
Construction:
- 8 lines, solid copper wire, AWG22
- pairs shielded with aluminum foil
- complete shielding in AL-MG braid
Color: gray
CPR-Dca-S2,d1,a1

For a Cat.8 channel link S/FTP Cabling we recommend to use the following components:
21.99.1800 VALUE S/FTP Cable, Cat.8, Solid Wire, AWG22
21.99.1807 VALUE Cat.8 RJ45 Keystone, Jack, toolless
21.99.1804 VALUE Cat.8 Shielded Field Connector RJ45 plug
21.99.1801 to 21.99.1803 VALUE S/FTP Patch Cable Stranded Cat.8, gray (1m to 3m)
The advantages of Category 8 cabling:
- Category 8 offers four times the bandwidth of Category 6A cabling, specified up to 2 GHz.
- Category 8 cables are shielded, though shielded cabling systems must be grounded, this is also not an issue in most data centers, since the connections are closer together.
- Category 8 connectors use the familiar RJ45 interface. The jacks require proper grounding to the cable and to the device they are installed into (patch panel or outlet), therefore they are designed for field termination.
- Category 8 number of connectors is limited to two connectors in the copper channel (excluding connections on end equipment), this is typically adequate in a data center environment and many common enterprise links.
- Maximum reach: 30 meters of channel (maximum 24m link cable + 2x 3m patch cables).

Supports IEEE802.3af, IEEE802.3at standards
Compliant with IEEE802.3, IEEE802.3u, and IEEE802.3ab standards
Wide temperature range, -10°C to 55°C

Stable electrical performance, compliant with ANSI/TIA-568.2-D, IEC61156, ISO/IEC11801.
Compliant with RoHS 2.0.
Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project.
Excellent performance in the Fluke 90-meter permanent link test while working continuously at 50°C high temperature.
Excellent performance in the Fluke 100-meter channel test while being continuously loaded with 57 V/1 A DC power (PoE).
Solid-Bare Copper conductor with less resistance, and better electrical properties and transmission performance.

24 Port Gigabit Smart POE Switch
24 x gigabit PoE RJ45 ports, 1 × gigabit RJ45 port, 1 x gigabit fiber optical port
Total PoE power budget 370 W
Unified cloud management for security systems
Network topology at your fingertips
Remote troubleshooting
Visualized topology management
Up to 300 m long-range PoE transmission
6 kV surge protection

[CAT6/UTP-M] HIKVISION U/UTP CAT6 PVC SHEATH Par Metre
